SKU: FHR-2

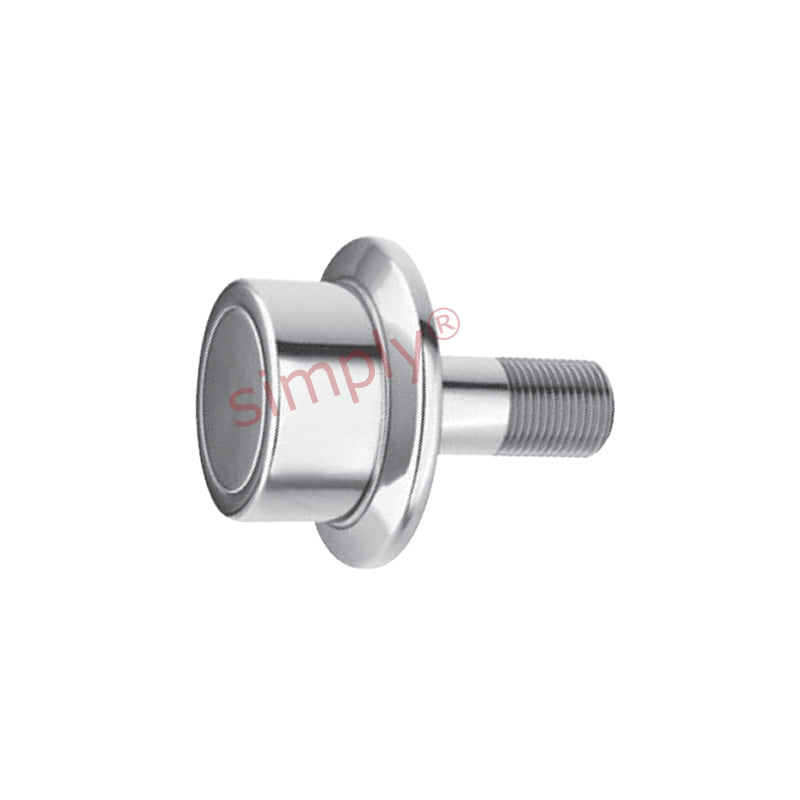

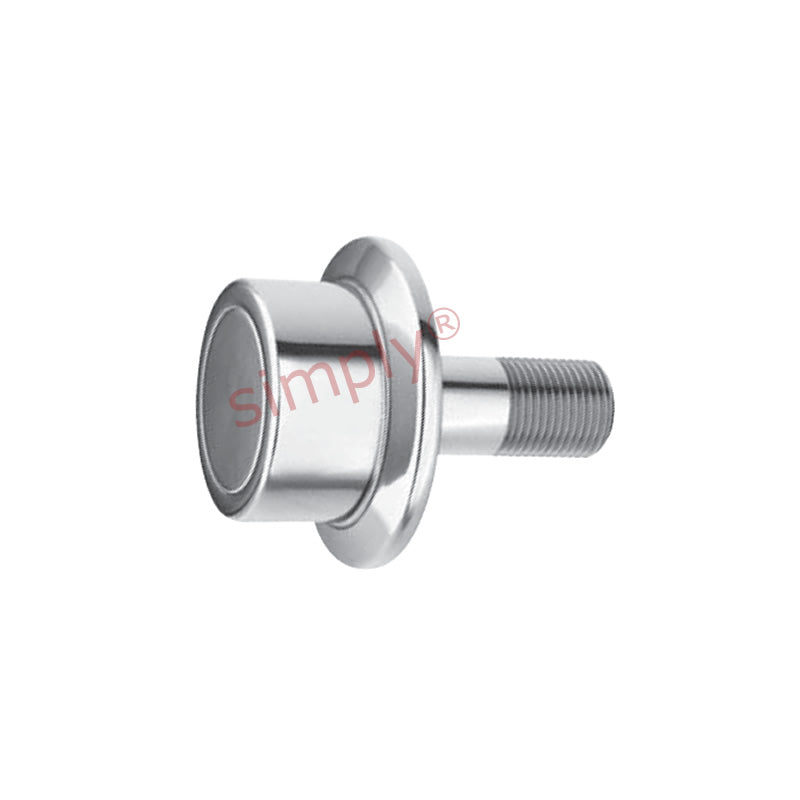

Major Brand FHR2 Hex Head Flanged Hi-Roller Bearing 2 inch Outside Diameter
Major Brand FHR2 Hex Head Flanged Hi-Roller Bearing 2 inch Outside Diameter
Regular price
€155,43
ex VAT
Regular price
Sale price
€155,43
ex VAT
Equivalent to: FHR-200-A FLR-2 FCF-2 FCR-2
In stock
Price Break
3+
€118,38
4+
€111,73
9+
€110,40
19+
€109,07
29+
€107,74
39+
€106,41
49+
€99,76
59+
€98,43
249+
€97,10
499+
€95,77
999+
€93,11
Description
Description
|
Flanged Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHR-200-A FLR-2 FCF-2 FCR-2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 42.88mm = 1.688 inch
Technical
Technical

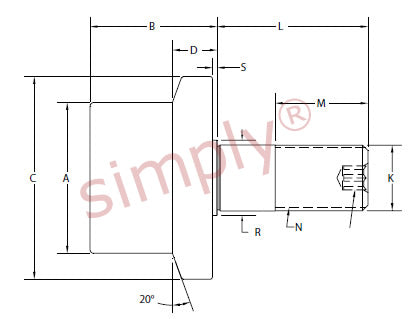

| A | 2 inch |
|---|---|
| B | 1.688 inch |
| C | 2.688 inch |
| D | 0.594 inch |
| K | 0.875 inch |
| L | 2 inch |
| M | 1.125 inch |
| Thread class 2A N | 7/8-14 UNF |
| R | 1 inch |
| S | 0.062 inch |
| Basic dynamic rating | 3820 lbs |
| Dynamic thrust load rating | 2380 lbs |
| Max static capacity | 1620 lbs |
