SKU: FHRE-2

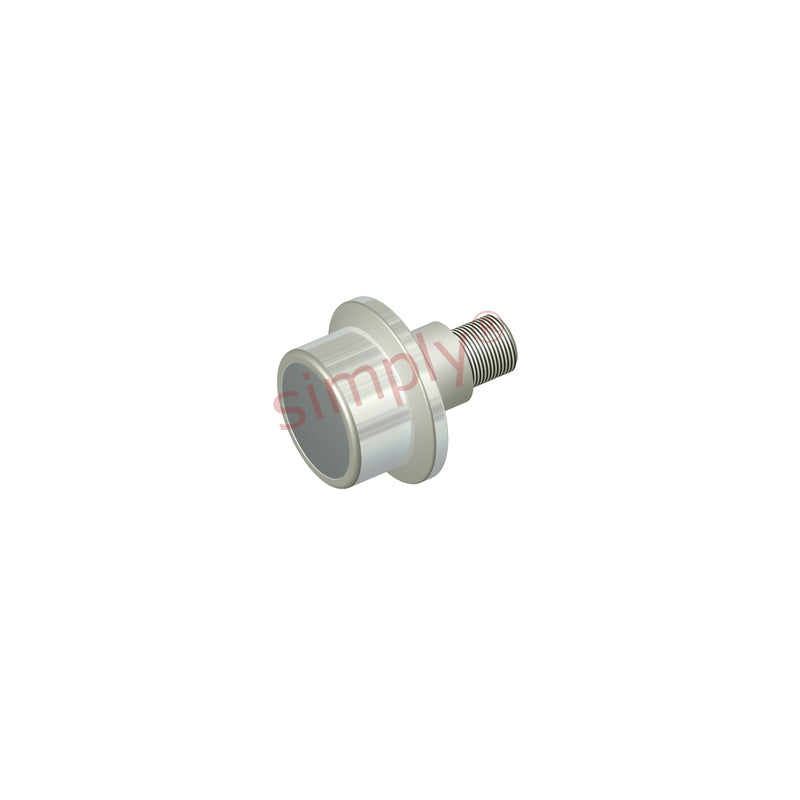

Major Brand FHRE2 Hex Head Flanged Eccentric Hi-Roller Bearing 2 inch Outside Diameter Allow 7-10 Days
Major Brand FHRE2 Hex Head Flanged Eccentric Hi-Roller Bearing 2 inch Outside Diameter Allow 7-10 Days
Regular price
€176,56
ex VAT
Regular price
Sale price
€176,56
ex VAT
Equivalent to: FHRE-200-A FCFE-2 FLRE-2
In stock
Price Break
3+
€134,47
4+
€126,91
9+
€125,40
19+
€123,89
29+
€122,38
39+
€120,87
49+
€113,32
59+
€111,80
249+
€110,29
499+
€108,78
999+
€105,76
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHRE-200-A FCFE-2 FLRE-2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 42.88mm = 1.688 inch
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.688 inch |
| C | 2.688 inch |
| D | 0.594 inch |
| L | 2 inch |
| M | 1-1/8 inch |
| Thread class 2A N | 7/8-14 UNF |
| R | 1.5 inch |
| S | 0.062 inch |
| T | 1.187 inch |
| U | 0.98 inch |
| W | 0.03 inch |
| Basic dynamic rating | 3830 lbs |
| Dynamic thrust load rating | 1000 lbs |
| Max static capacity | 1620 lbs |
