SKU: FLN32-PBC

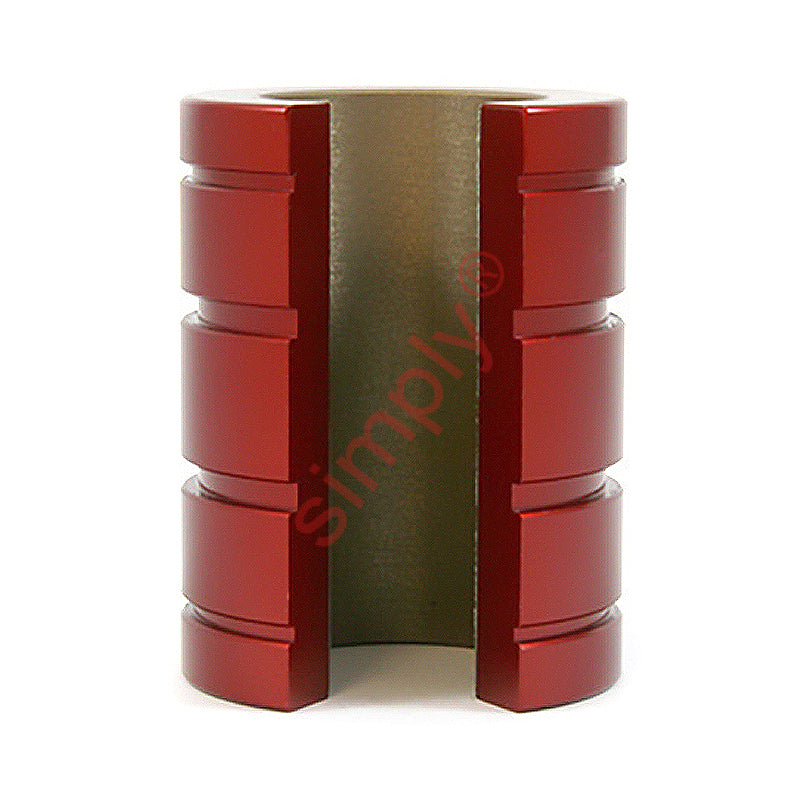

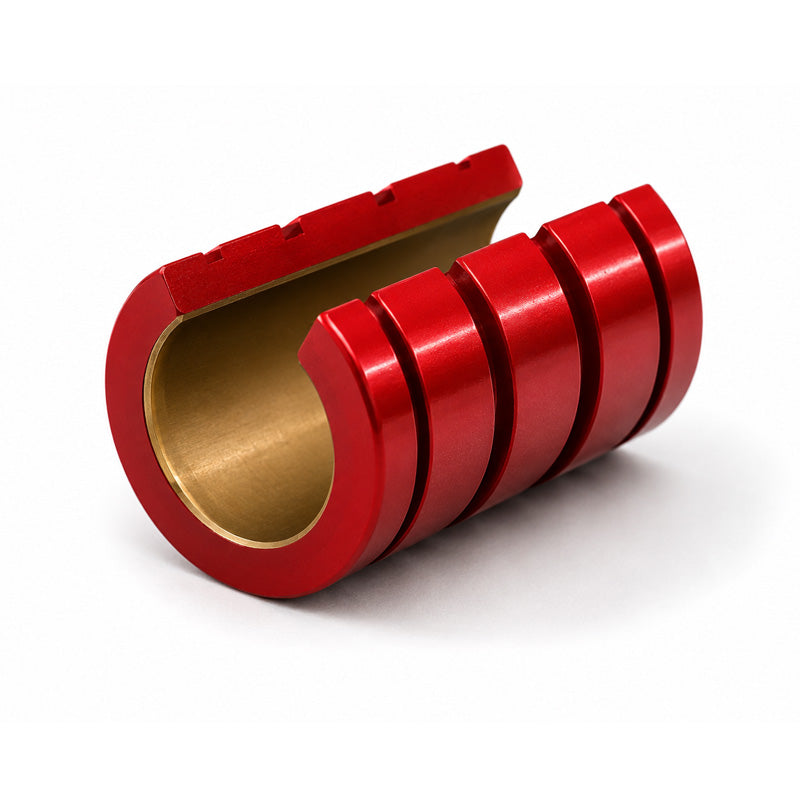

PBC FLN 32 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2x3x4 inch (Allow 2-3 Days)
PBC FLN 32 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2x3x4 inch (Allow 2-3 Days)
Regular price
€288,67
ex VAT
Regular price
Sale price
€288,67
ex VAT
In stock
Price Break
10+
€256,92
19+
€242,48
29+
€239,60
39+
€236,71
49+
€233,82
74+
€230,94
99+
€216,50
199+
€213,62
249+
€210,73
499+
€207,84
999+
€202,07
Couldn't load pickup availability
Description
Description

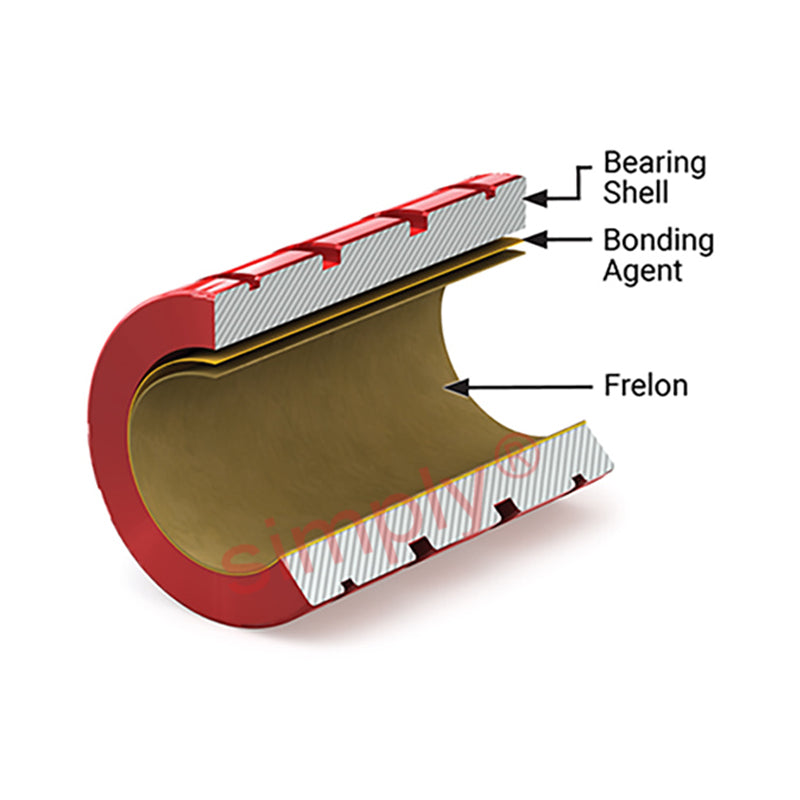

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 76.2mm = 3 inch
- Length:
- 101.6mm = 4 inch
Technical
Technical

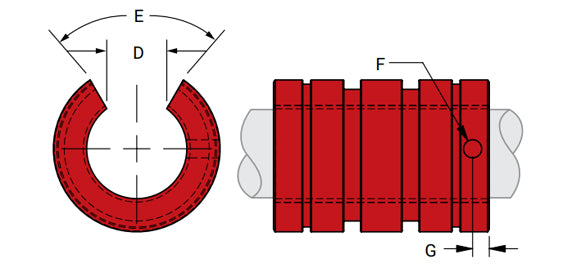

| Inside Diameter (A) | 50.8mm = 2 inch |
|---|---|
| Outside Diameter (B) | 76.2mm = 3 inch |
| Width (C) | 101.6mm = 4 inch |
| Nominal Bore Size | 2 inch |
| Effective Surface Area (Square Inch) | 8.35 inch |
| Max Static Load | 111.33kN |
| Weight | 0.654kg |
