SKU: FLN40-PBC
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
Regular price
€446,34
ex VAT
Regular price
Sale price
€446,34
ex VAT
In stock
Price Break
10+
€397,24
19+
€374,93
29+
€370,46
39+
€366,00
49+
€361,54
74+
€357,07
99+
€334,76
199+
€330,29
249+
€325,83
499+
€321,36
999+
€312,44
Couldn't load pickup availability
Description
Description

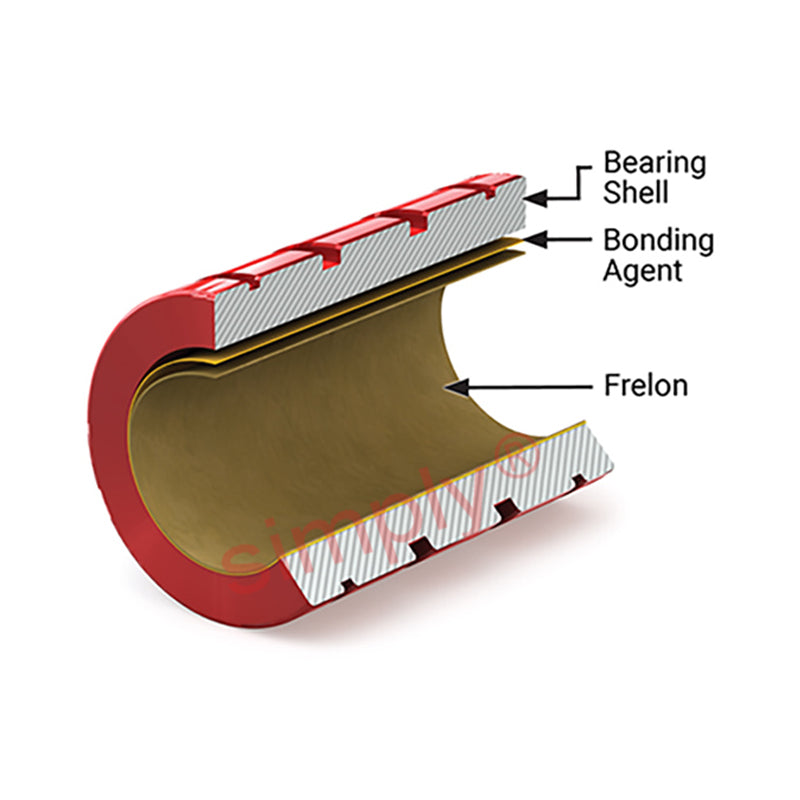

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Length:
- 127mm = 5 inch
Technical
Technical
| Inside Diameter (A) | 63.5mm = 2.5 (2-1/2) inch |
|---|---|
| Outside Diameter (B) | 95.25mm = 3.75 (3-3/4) inch |
| Width (C) | 127mm = 5 inch |
| Nominal Bore Size | 2-1/2 inch |
| Effective Surface Area (Square Inch) | 13 inch |
| Max Static Load | 173.33kN |
| Weight | 1.277kg |
