SKU: FY1.11/16TF/VA201-SKF

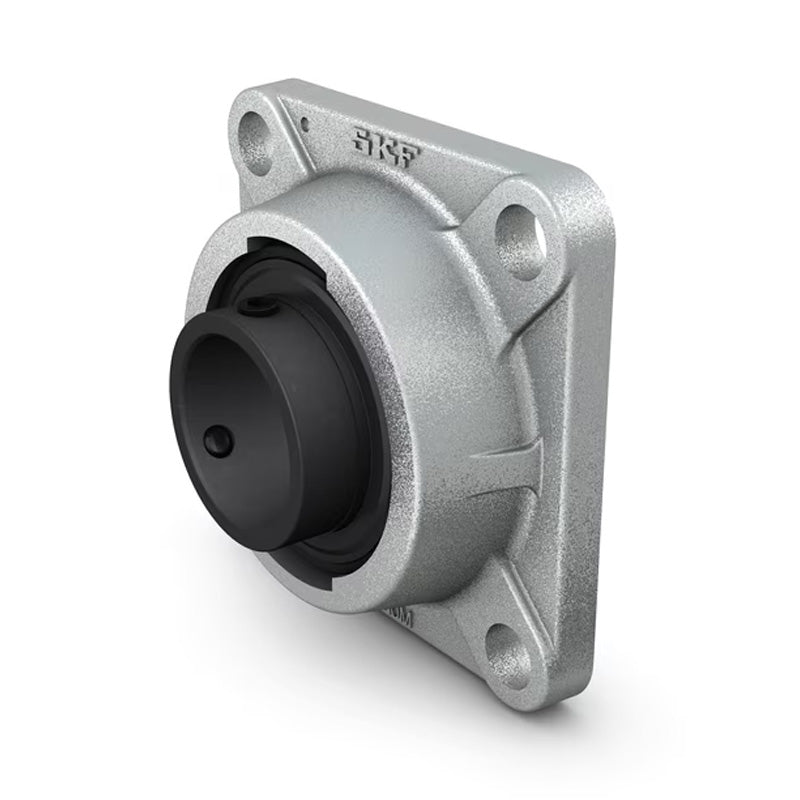

SKF FY1-11/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-11/16inch
SKF FY1-11/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-11/16inch
Regular price
€304,76
ex VAT
Regular price
Sale price
€304,76
ex VAT
In stock
Price Break
10+
€232,10
19+
€219,06
29+
€216,45
39+
€213,84
49+
€211,24
74+
€208,63
99+
€195,59
199+
€192,98
249+
€190,37
499+
€187,77
999+
€182,55
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.25 kg |
