SKU: FY1.15/16FM-SKF

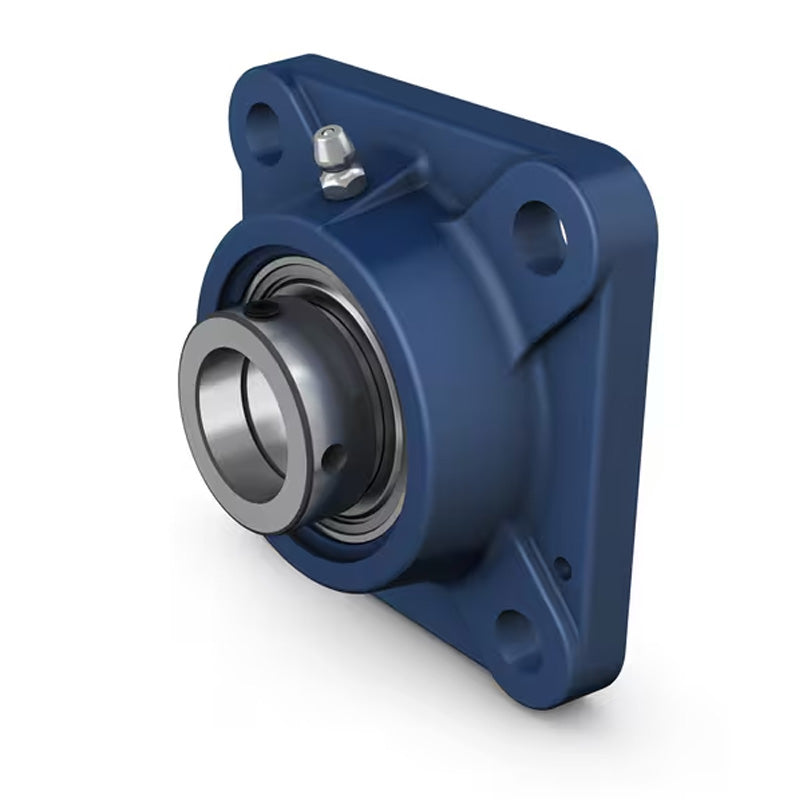

SKF FY1-15/16FM Square Cast Housing with Eccentric Collar 1-15/16 inch Insert
SKF FY1-15/16FM Square Cast Housing with Eccentric Collar 1-15/16 inch Insert
Regular price
€133,06
ex VAT
Regular price
Sale price
€133,06
ex VAT
In stock
Price Break
10+
€101,33
20+
€95,64
30+
€94,50
40+
€93,36
50+
€92,22
75+
€91,08
100+
€85,39
200+
€84,25
250+
€83,11
500+
€81,98
1000+
€79,70
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B1 | 43.7mm |
| J | 111mm |
| L | 143mm |
| G | 14mm |
| s1 | 32.7mm |
| T | 60.7mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.55 kg |
| Housing | Insert |
