SKU: FY1.3/4FM-SKF

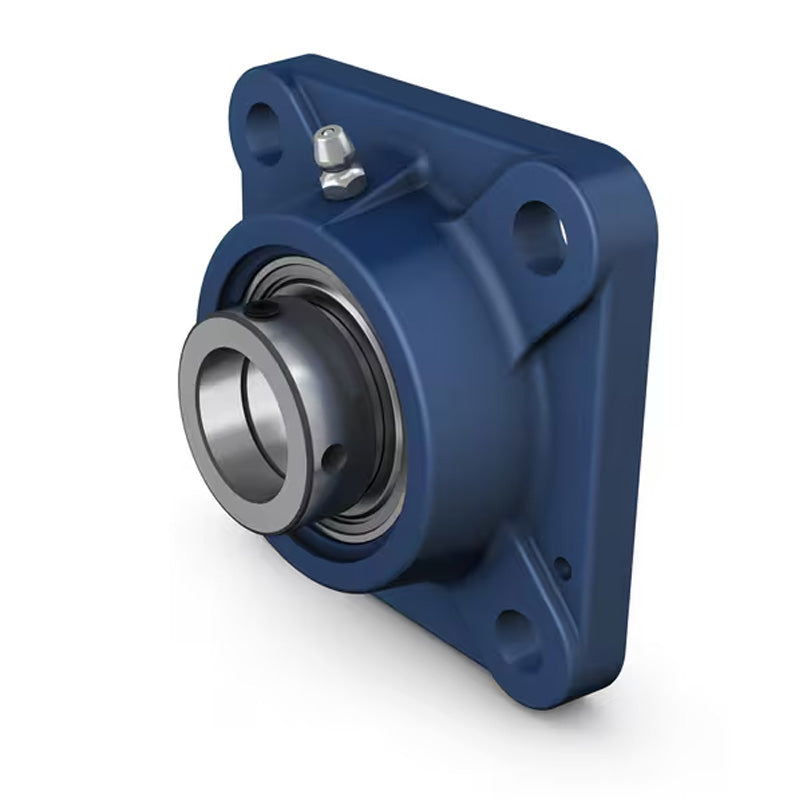

SKF FY1-3/4FM Square Cast Housing with Eccentric Collar 1-3/4 inch Insert
SKF FY1-3/4FM Square Cast Housing with Eccentric Collar 1-3/4 inch Insert
Regular price
€117,56
ex VAT
Regular price
Sale price
€117,56
ex VAT
In stock
Price Break
10+
€104,63
19+
€98,75
29+
€97,57
39+
€96,40
49+
€95,22
74+
€94,05
99+
€88,17
199+
€86,99
249+
€85,82
499+
€84,64
999+
€82,29
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 34mm |
| B1 | 43.7mm |
| J | 105mm |
| L | 137mm |
| G | 34mm |
| s1 | 32.7mm |
| T | 56.5mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.15 kg |
| Housing | Insert |
