SKU: FY2.11/16TF-SKF
SKF FY2-11/16TF Square Cast Housing with Grub Screw 2-11/16 inch Insert
SKF FY2-11/16TF Square Cast Housing with Grub Screw 2-11/16 inch Insert
Regular price
€363,86
ex VAT
Regular price
Sale price
€363,86
ex VAT
In stock
Price Break
10+
€277,12
20+
€261,55
30+
€258,43
40+
€255,32
50+
€252,21
75+
€249,09
100+
€233,53
200+
€230,41
250+
€227,30
500+
€224,18
1000+
€217,96
Description
Description
|

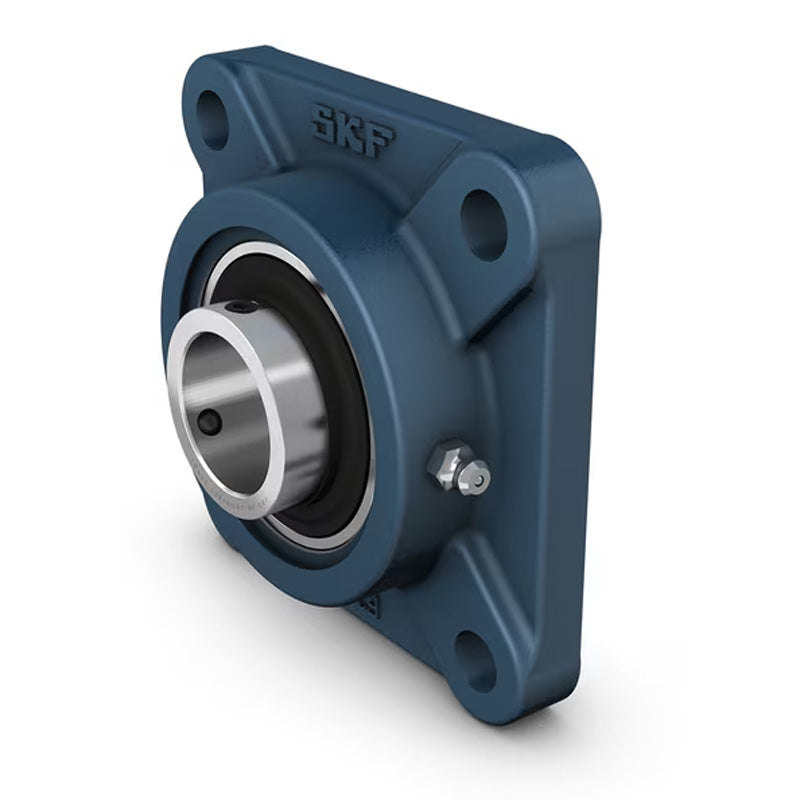

SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 149.5mm
Technical
Technical
| d | 2-11/16 inch |
|---|---|
| A1 | 52.5mm |
| A2 | 16.5mm |
| B | 68.3mm |
| J | 149.5mm |
| L | 187mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 72.4mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 5.1 kg |
| Housing | Insert |
