SKU: FY2.3/16TF/VA228-SKF

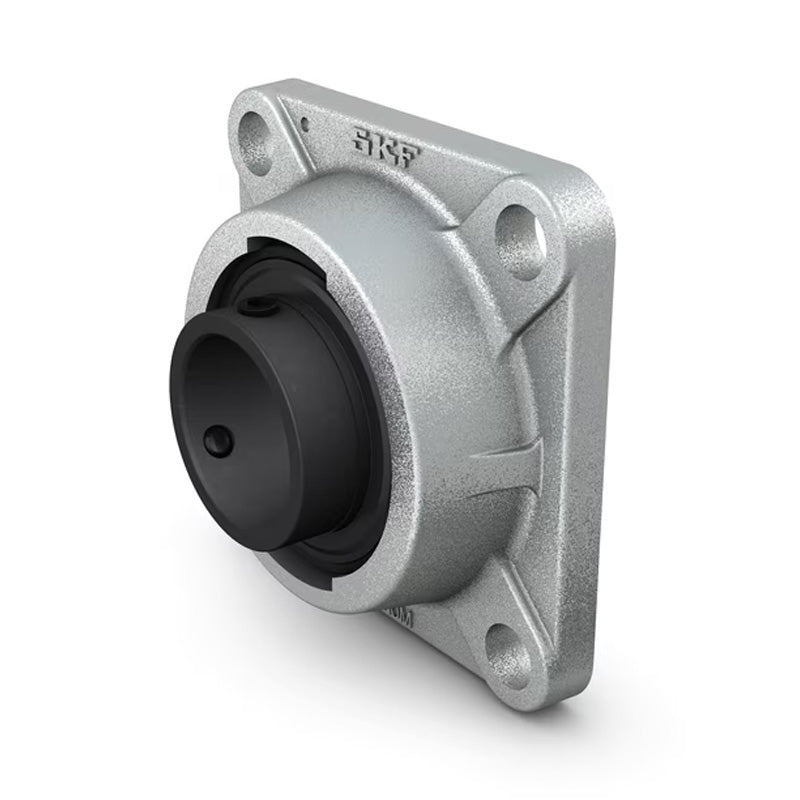

SKF FY2-3/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-3/16inch
SKF FY2-3/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-3/16inch
Regular price
€429,07
ex VAT
Regular price
Sale price
€429,07
ex VAT
In stock
Price Break
10+
€326,78
19+
€308,42
29+
€304,75
39+
€301,08
49+
€297,40
74+
€293,73
99+
€275,37
199+
€271,70
249+
€268,03
499+
€264,36
999+
€257,02
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| G | 16mm |
| T | 64.4mm |
| Dynamic load C | 25 kN |
| Static load Co | 29 kN |
| Weight | 3.7 kg |
