SKU: FY2.3/16WF-SKF

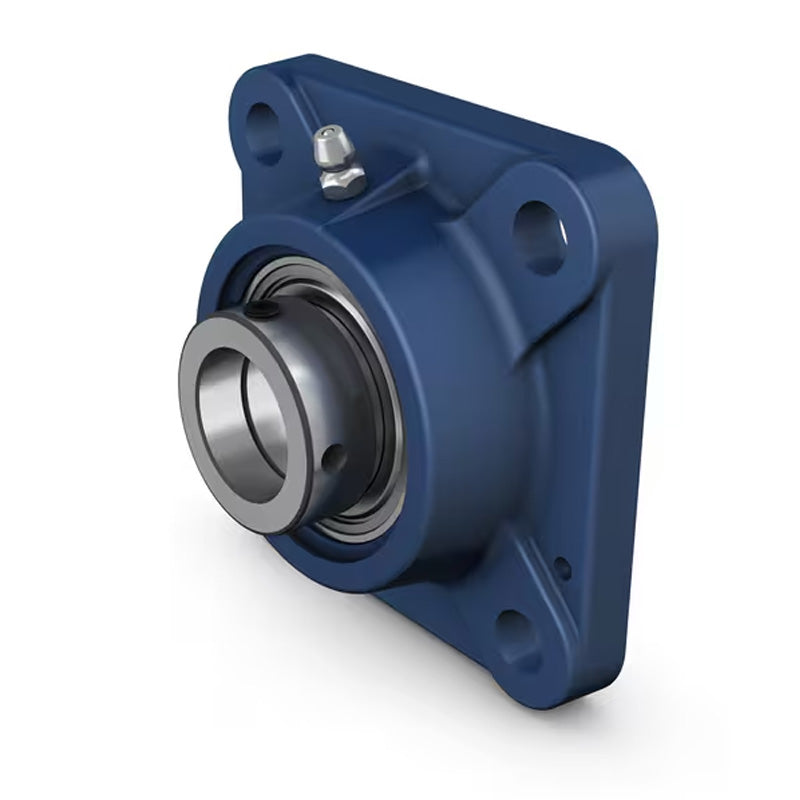

SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
Regular price
€188,09
ex VAT
Regular price
Sale price
€188,09
ex VAT
In stock
Price Break
10+
€143,25
20+
€135,20
30+
€133,59
40+
€131,98
50+
€130,37
75+
€128,76
100+
€120,72
200+
€119,11
250+
€117,50
500+
€115,89
1000+
€112,67
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B1 | 71.4mm |
| J | 130mm |
| L | 162mm |
| G | 16mm |
| s1 | 43.6mm |
| T | 74.6mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.85 kg |
| Housing | Insert |
