SKU: FY30TF/VA201-SKF

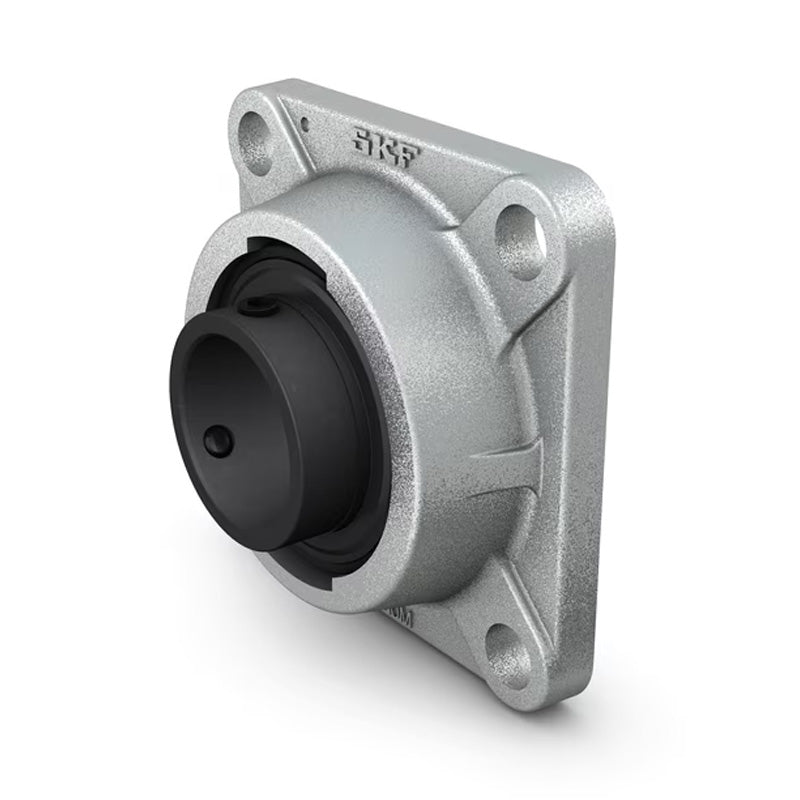

SKF FY30TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
SKF FY30TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 30mm
Regular price
€232,51
ex VAT
Regular price
Sale price
€232,51
ex VAT
In stock
Price Break
10+
€177,08
19+
€167,14
29+
€165,15
39+
€163,16
49+
€161,17
74+
€159,18
99+
€149,23
199+
€147,24
249+
€145,25
499+
€143,26
999+
€139,28
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| J | 82.5mm |
| L | 108mm |
| N | 12.7mm |
| G | 10mm |
| T | 42.2mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 1.08 kg |
