SKU: FY50TF/VA228-SKF

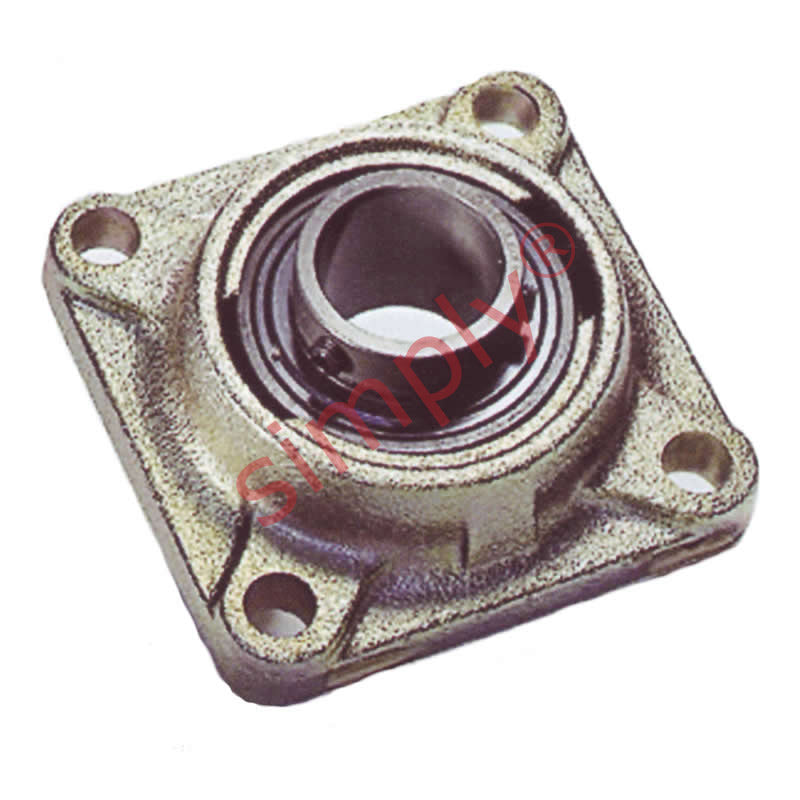

SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
SKF FY50TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 50mm
Regular price
€379,79
ex VAT
Regular price
Sale price
€379,79
ex VAT
In stock
Price Break
10+
€338,01
19+
€319,02
29+
€315,23
39+
€311,43
49+
€307,63
74+
€303,83
99+
€284,84
199+
€281,04
249+
€277,25
499+
€273,45
999+
€265,85
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| N | 15.9mm |
| G | 14mm |
| T | 60.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.49 kg |
