SKU: FY7/8FM-SKF

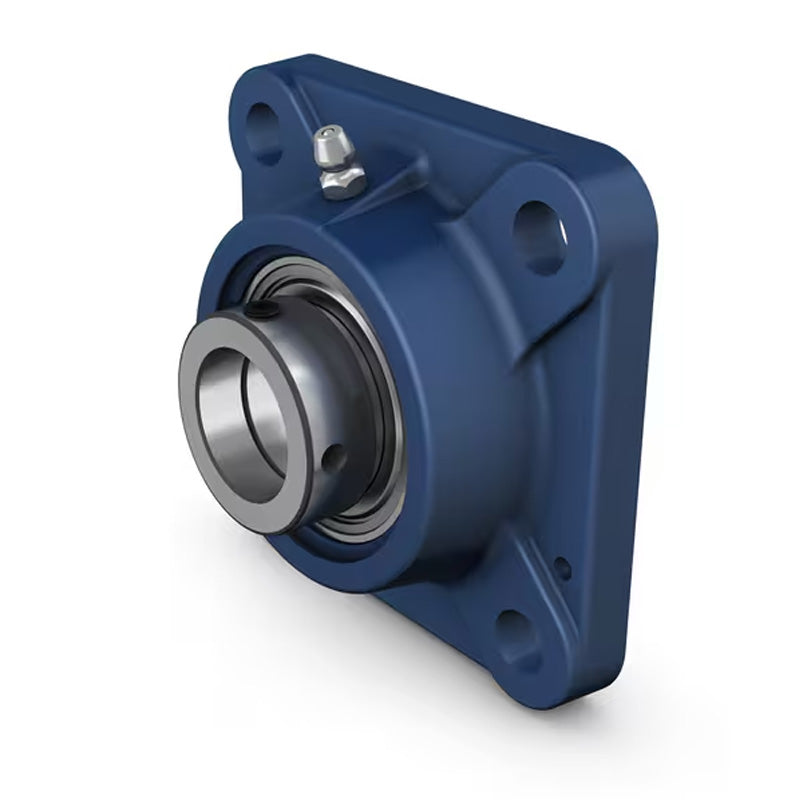

SKF FY7/8FM Square Cast Housing with Eccentric Collar 7/8 inch Insert
SKF FY7/8FM Square Cast Housing with Eccentric Collar 7/8 inch Insert
Regular price
€38,73
ex VAT
Regular price
Sale price
€38,73
ex VAT
In stock
Price Break
10+
€29,49
20+
€27,83
30+
€27,50
40+
€27,17
50+
€26,84
75+
€26,51
100+
€24,85
200+
€24,52
250+
€24,19
500+
€23,86
1000+
€23,20
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- FY
- Bolt Hole Centres:
- 70mm

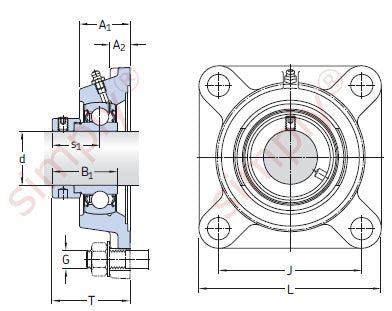

Technical
Technical
| d | 7/8 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B1 | 31mm |
| J | 70mm |
| L | 95mm |
| G | 30mm |
| s1 | 23.5mm |
| T | 42.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.81 kg |
| Housing | Insert |
