SKU: FYC65TF-SKF

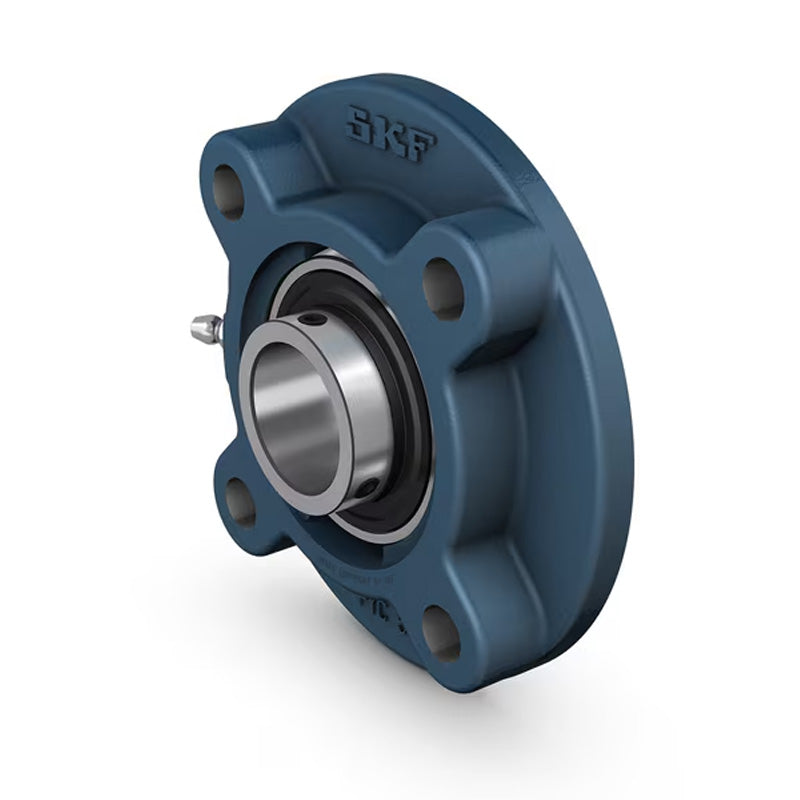

SKF FYC65TF Round Cast Housing with Grub Screw 65mm Insert
SKF FYC65TF Round Cast Housing with Grub Screw 65mm Insert
Regular price
€225,97
ex VAT
Regular price
Sale price
€225,97
ex VAT
In stock
Price Break
10+
€172,10
20+
€162,43
30+
€160,50
40+
€158,56
50+
€156,63
75+
€154,69
100+
€145,03
200+
€143,09
250+
€141,16
500+
€139,23
1000+
€135,36
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Style:
- FYC
- Pitch Circle Diameter:
- 170mm
Technical
Technical
| d | 65mm |
|---|---|
| A1 | 50mm |
| A2 | 15mm |
| A3 | 14mm |
| B | 68.3mm |
| Da h8 | 145mm |
| J | 170mm |
| J1 | 120.2mm |
| L | 205mm |
| N | 19mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 58.9mm |
| Static load Cr | 40.5 kN |
| Dynamic load Cor | 55.9 kN |
| Fatigue load limit Pu | 1.73 kN |
| Limiting speed | 3000 rpm |
| Weight | 5.7 kg |
