SKU: FYT1.1/4TF/VA201-SKF

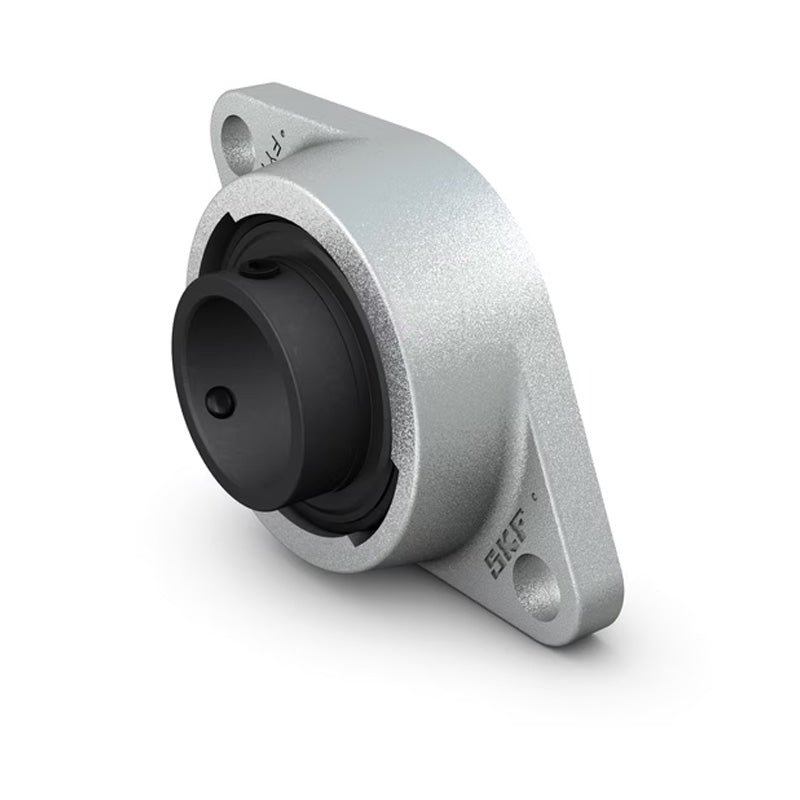

SKF FYT114TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch

Name: SKF FYT114TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
Brand: SKF
SKU: FYT1.1/4TF/VA201-SKF
Price: 230.52 EUR
Availability: InStock

€230,52 ex VAT

Sale Sold out

In stock

Price Break

10+ €175,56

19+ €165,69

29+ €163,72

39+ €161,75

49+ €159,78

74+ €157,80

99+ €147,94

199+ €145,97

249+ €144,00

499+ €142,02

999+ €138,08

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Temperature Range:: High Temp

Technical

d	1-1/4 inch
A1	34.5mm
A2	13mm
B	42.9mm
H	156mm
J	130.2mm
L	96mm
N	14.3mm
G	12mm
T	46.4mm
Static load Co	15.3 kN
Weight	1.25 kg
