SKU: FYT1.1/4TF/VA228-SKF

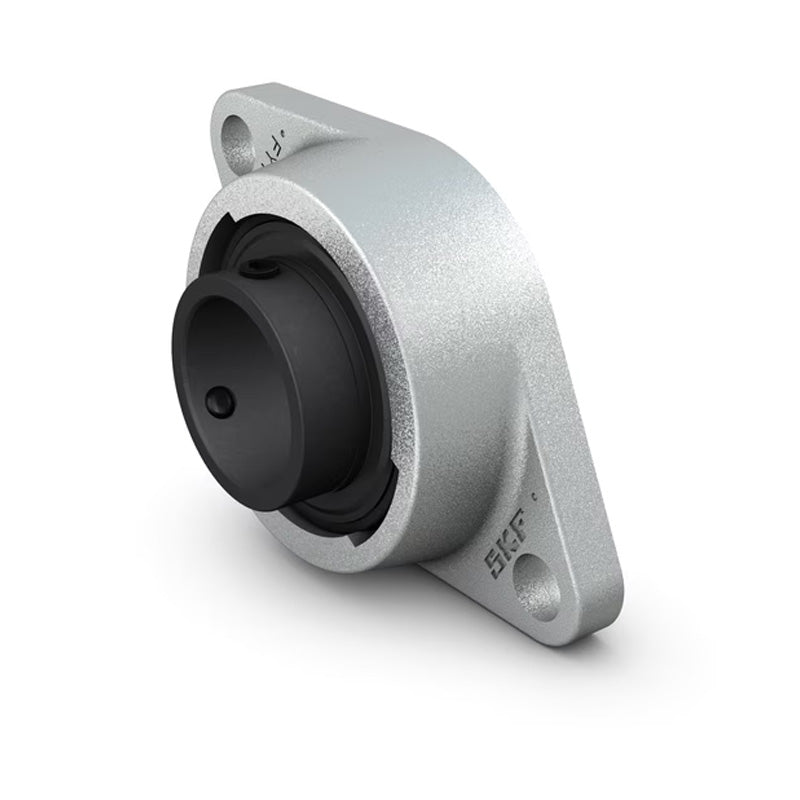

SKF FYT114TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/4 inch

Name: SKF FYT114TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/4 inch
Brand: SKF
SKU: FYT1.1/4TF/VA228-SKF
Price: 253.55 EUR
Availability: InStock

€253,55 ex VAT

Sale Sold out

In stock

Price Break

10+ €193,11

19+ €182,26

29+ €180,09

39+ €177,92

49+ €175,75

74+ €173,58

99+ €162,73

199+ €160,56

249+ €158,39

499+ €156,22

999+ €151,88

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Temperature Range:: High Temp

Technical

d	1-1/4 inch
A1	34.5mm
A2	13mm
B	42.9mm
H	156mm
J	130.2mm
L	96mm
N	14.3mm
G	12mm
T	46.4mm
Static load Co	15.3 kN
Weight	1.25 kg
