SKU: FYT1.5/8TF-SKF

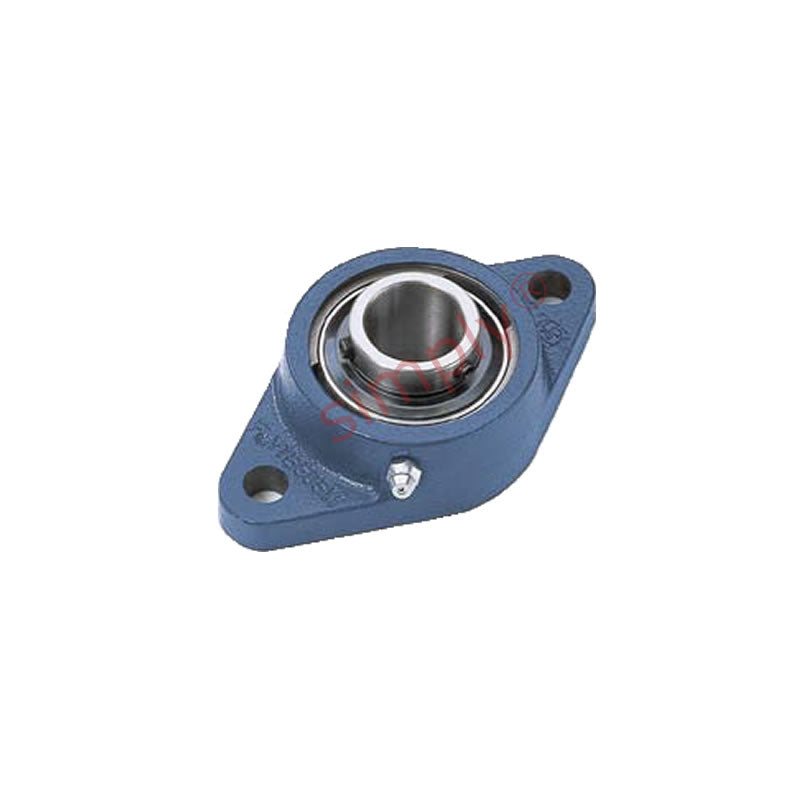

SKF FYT1-5/8TF Oval Cast Housing with Grub Screw 1-5/8 inch Insert
SKF FYT1-5/8TF Oval Cast Housing with Grub Screw 1-5/8 inch Insert
Regular price
€92,21
ex VAT
Regular price
Sale price
€92,21
ex VAT
In stock
Price Break
10+
€70,23
20+
€66,28
30+
€65,49
40+
€64,70
50+
€63,91
75+
€63,12
100+
€59,18
200+
€58,39
250+
€57,60
500+
€56,81
1000+
€55,23
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 148.4mm
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 178.5mm |
| J | 148.4mm |
| L | 111mm |
| N | 15.9mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.9 kg |
| Housing | Insert |
