SKU: FYT1.7/16TF-SKF

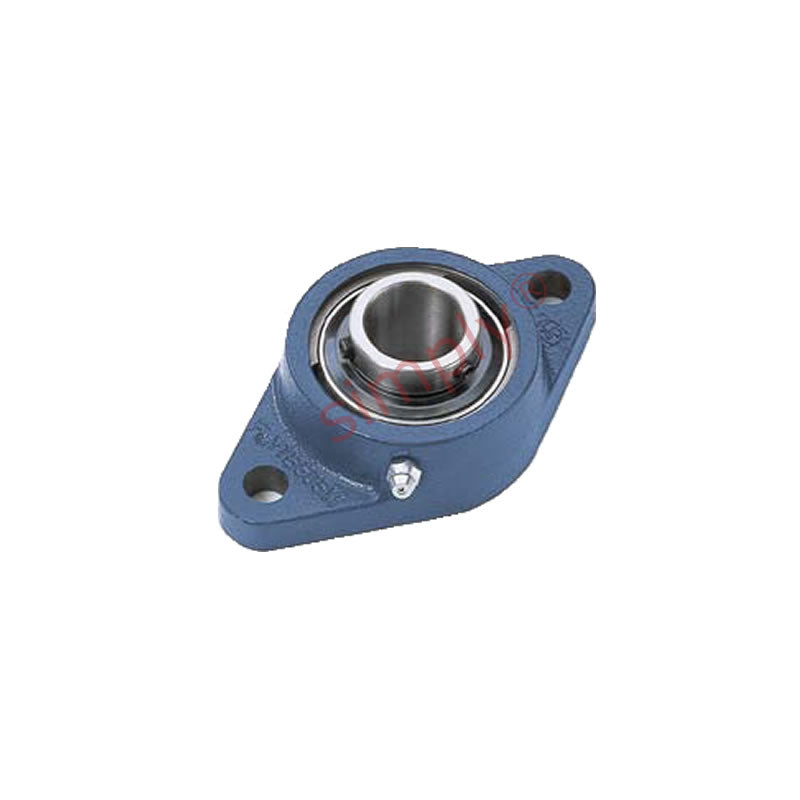

SKF FYT1-7/16TF Oval Cast Housing with Grub Screw 1-7/16 inch Insert
SKF FYT1-7/16TF Oval Cast Housing with Grub Screw 1-7/16 inch Insert
Regular price
€56,62
ex VAT
Regular price
Sale price
€56,62
ex VAT
In stock
Price Break
10+
€43,12
20+
€40,70
30+
€40,21
40+
€39,73
50+
€39,24
75+
€38,76
100+
€36,34
200+
€35,85
250+
€35,37
500+
€34,88
1000+
€33,92
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 130.2mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.25 kg |
| Housing | Insert |
