SKU: FYT1.TF/VA228-SKF

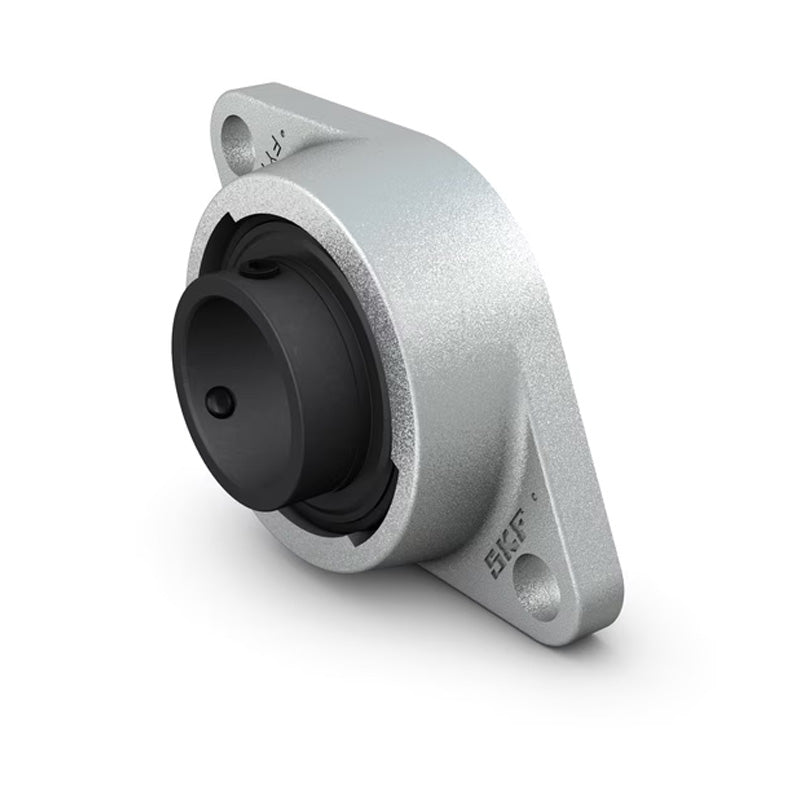

SKF FYT1TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1 inch

Name: SKF FYT1TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1 inch
Brand: SKF
SKU: FYT1.TF/VA228-SKF
Price: 155.94 EUR
Availability: InStock

€155,94 ex VAT

Sale Sold out

In stock

Price Break

10+ €118,76

19+ €112,09

29+ €110,76

39+ €109,42

49+ €108,09

74+ €106,75

99+ €100,08

199+ €98,75

249+ €97,41

499+ €96,08

999+ €93,41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25.4mm = 1 inch
Temperature Range:: High Temp

Technical

d	1 inch
A1	30mm
A2	12mm
B	34.1mm
H	124mm
J	98.9mm
L	70mm
N	12.7mm
G	10mm
T	38.8mm
Static load Co	7.8 kN
Weight	0.63 kg
