SKU: FYT20TF/VA228-SKF

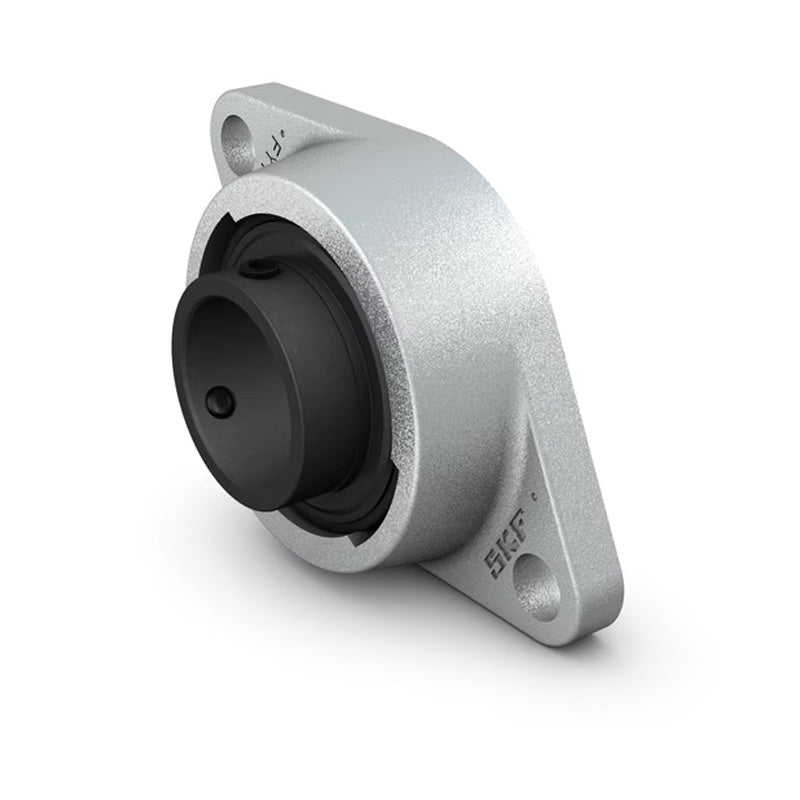

SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
Regular price
€139,95
ex VAT
Regular price
Sale price
€139,95
ex VAT
In stock
Price Break
10+
€124,56
19+
€117,56
29+
€116,16
39+
€114,76
49+
€113,36
74+
€111,96
99+
€104,96
199+
€103,56
249+
€102,16
499+
€100,76
999+
€97,97
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 24.6mm |
| A2 | 11.11mm |
| B | 31mm |
| H | 112mm |
| J | 89.7mm |
| L | 60.3mm |
| N | 11.1mm |
| G | 10mm |
| T | 32.6mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.5 kg |
