SKU: FYT35TF/VA201-SKF

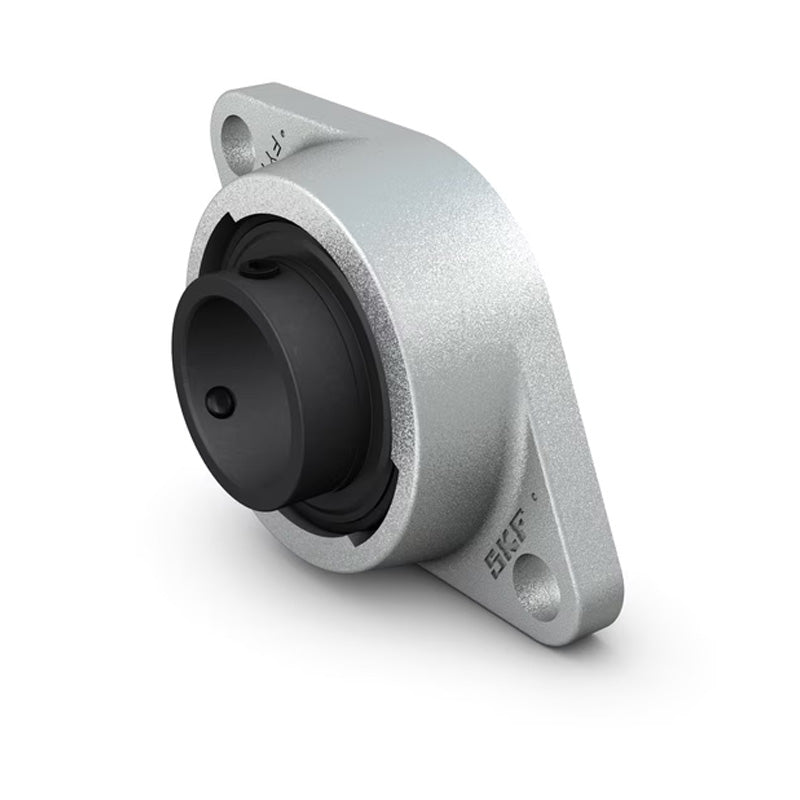

SKF FYT35TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 35mm
SKF FYT35TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 35mm
Regular price
€283,36
ex VAT
Regular price
Sale price
€283,36
ex VAT
In stock
Price Break
10+
€215,81
19+
€203,68
29+
€201,26
39+
€198,83
49+
€196,41
74+
€193,98
99+
€181,86
199+
€179,44
249+
€177,01
499+
€174,59
999+
€169,74
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| T | 46.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.27 kg |
