SKU: FYT7/8TF-SKF

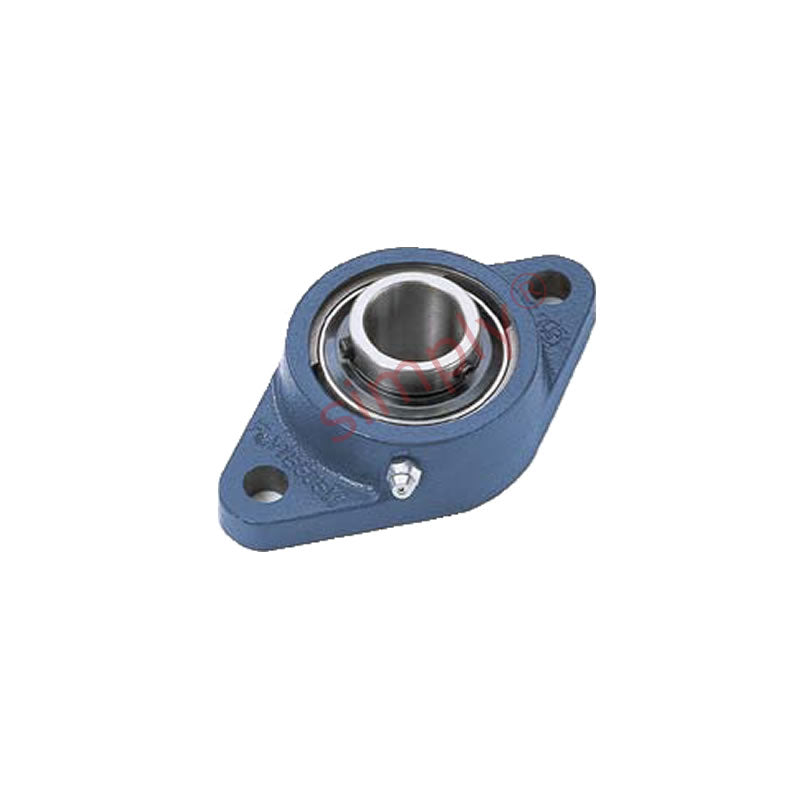

SKF FYT7/8TF Oval Cast Housing with Grub Screw 7/8 inch Insert
SKF FYT7/8TF Oval Cast Housing with Grub Screw 7/8 inch Insert
Regular price
€56,74
ex VAT
Regular price
Sale price
€56,74
ex VAT
In stock
Price Break
10+
€43,21
20+
€40,78
30+
€40,29
40+
€39,81
50+
€39,32
75+
€38,84
100+
€36,41
200+
€35,92
250+
€35,44
500+
€34,95
1000+
€33,98
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 98.8mm

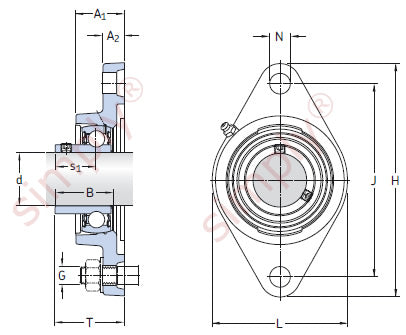

Technical
Technical
| d | 7/8 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| H | 124mm |
| J | 98.8mm |
| L | 70mm |
| N | 12.7mm |
| G | 11mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.66 kg |
| Housing | Insert |
