SKU: FYTB30WF-SKF

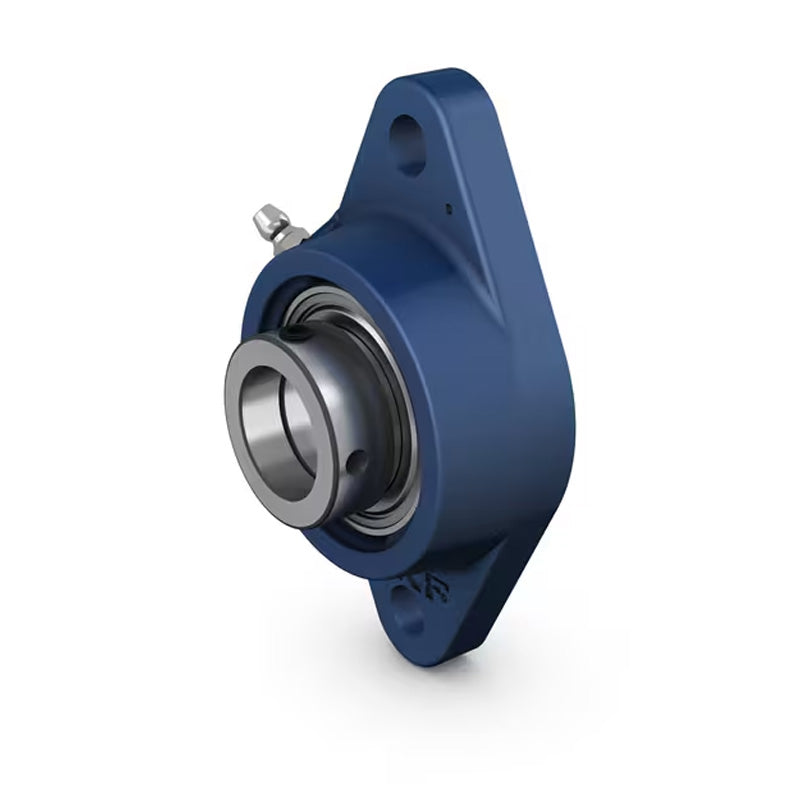

SKF FYTB30WF Oval Cast Housing with Grub Screw 30mm Insert
SKF FYTB30WF Oval Cast Housing with Grub Screw 30mm Insert
Regular price
€73,75
ex VAT
Regular price
Sale price
€73,75
ex VAT
In stock
Price Break
10+
€56,17
20+
€53,01
30+
€52,38
40+
€51,75
50+
€51,12
75+
€50,49
100+
€47,33
200+
€46,70
250+
€46,07
500+
€45,44
1000+
€44,18
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTB
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B1 | 48.4mm |
| Da | 76.2mm |
| H | 141.5mm |
| J | 116.5mm |
| L | 83mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 30.1mm |
| T | 50.1mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 1 kg |
| Compatible end cover closed | ECY206 |
