SKU: GA12-FLURO

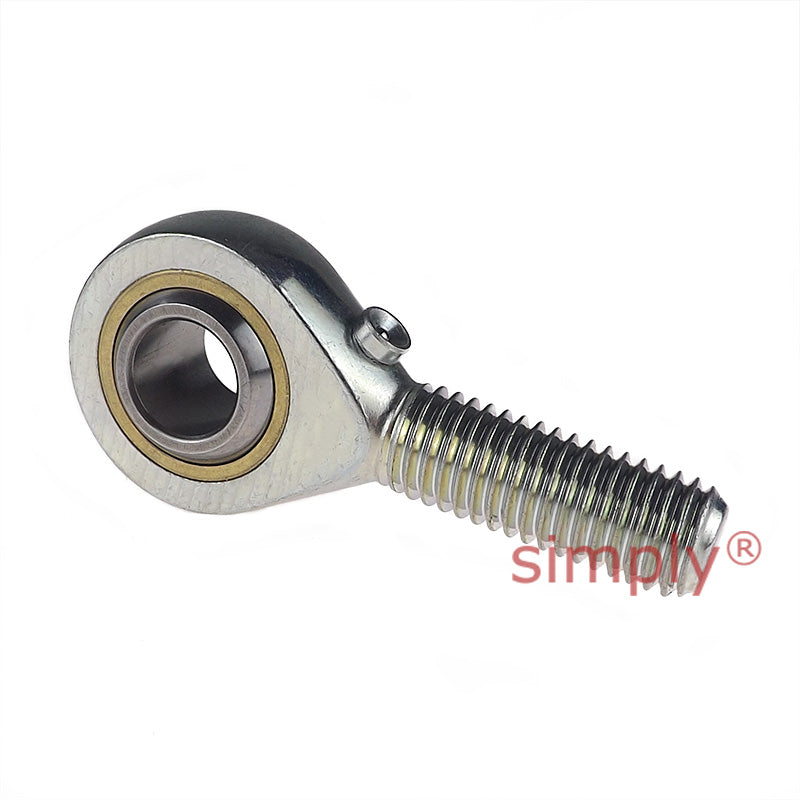

Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
Regular price
€22,91
ex VAT
Regular price
Sale price
€22,91
ex VAT
In stock
Price Break
10+
€20,39
19+
€19,24
29+
€19,02
39+
€18,79
49+
€18,56
74+
€18,33
99+
€17,18
199+
€16,95
249+
€16,72
499+
€16,50
999+
€16,04
Couldn't load pickup availability
Description
Description
Fluro GA Series Steel / Brass Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel. Zinc plated and fitted with a grease nipple. Especially suited for axial loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Steel / Brass

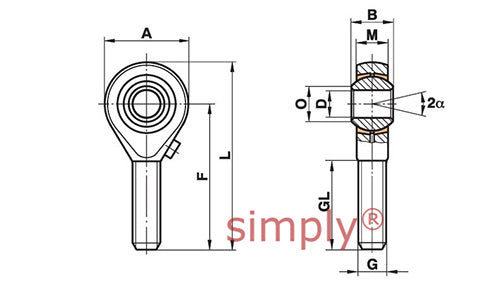

Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 16mm |
| M | 12mm |
| A | 32mm |
| F | 57mm |
| L | 70mm |
| O | 15.4mm |
| Thread Size G | M12 |
| GL | 32mm |
| Static Load Co | 25.5kN |
| Dynamic Load | 10kN |
| Limiting Speed | 450rev/min |
| Approx weight | 0.087kg |
