SKU: GAC40F-SKF

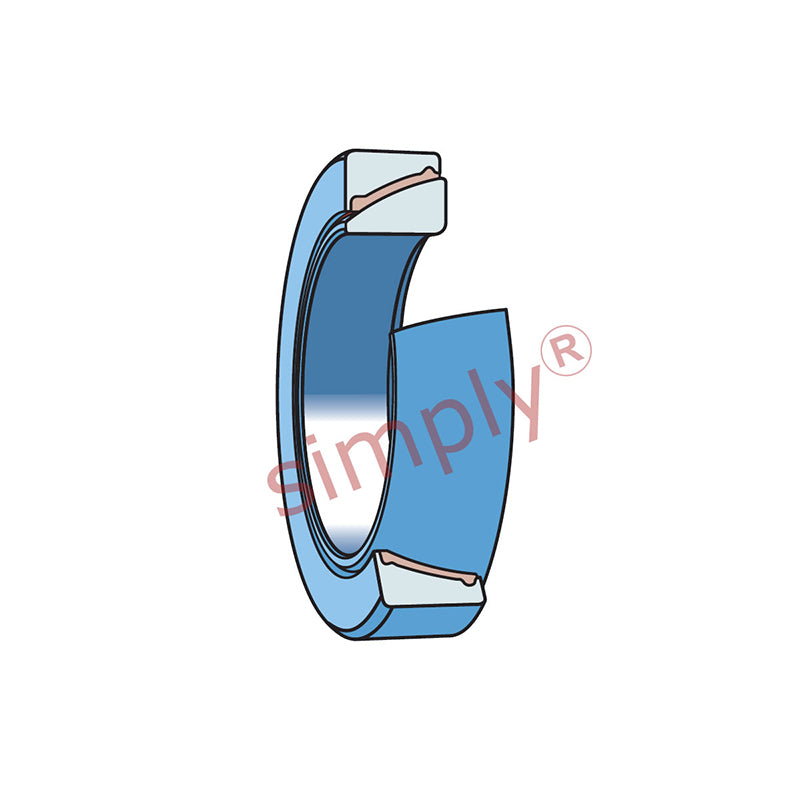

SKF GAC40F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 40x68x19mm
SKF GAC40F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 40x68x19mm
Regular price
€101,64
ex VAT
Regular price
Sale price
€101,64
ex VAT
Equivalent to: GE40SX GAC40T
In stock
Price Break
10+
€90,46
19+
€85,38
29+
€84,36
39+
€83,34
49+
€82,33
74+
€81,31
99+
€76,23
199+
€75,21
249+
€74,20
499+
€73,18
999+
€71,15
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
Equivalent: GE40SX GAC40T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 19mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| T | 19mm |
| Angle | 3.5 degrees |
| Dynamic load | 39 kN |
| Static load | 62 kN |
| dk | 62mm |
| B | 19mm |
| C | 17mm |
| r1 min | 1mm |
| r2 min | 0.3mm |
| s | 2.8mm |
| da max | 45mm |
| db max | 54mm |
| Da min | 50mm |
| Db min | 63mm |
| ra max | 1mm |
| Weight | 0.33 kg |
