SKU: GAR8DO-INA

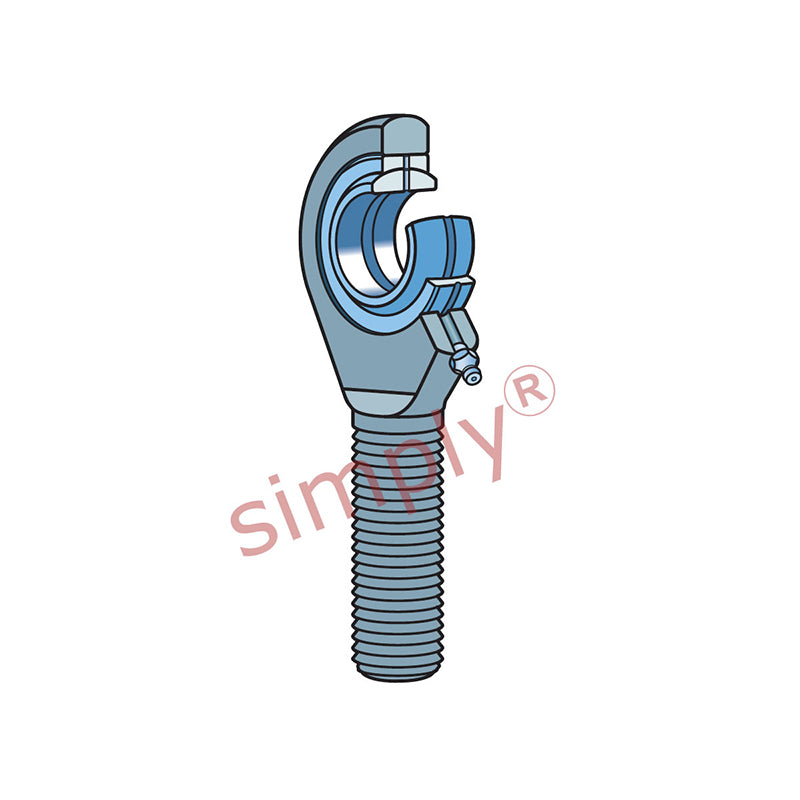

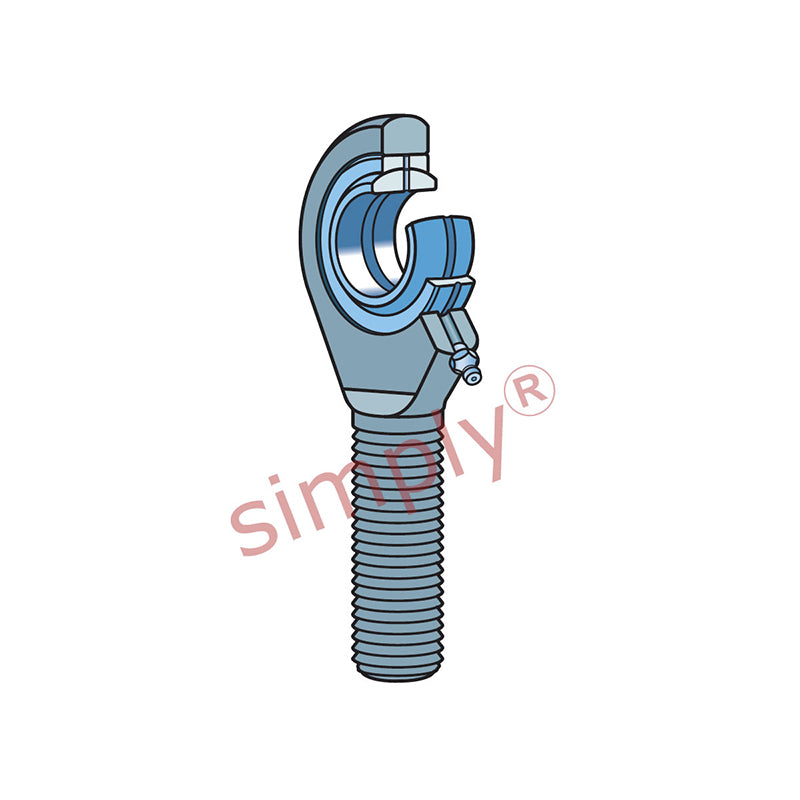

INA GAR8-DO Right Hand Steel Plain Male Rod End M8 Thread
INA GAR8-DO Right Hand Steel Plain Male Rod End M8 Thread
Regular price
€22,83
ex VAT
Regular price
Sale price
€22,83
ex VAT
Equivalent to: 4012802525298 GAR8DO GAR8ES SA8E
In stock
Price Break
10+
€17,39
19+
€16,41
29+
€16,22
39+
€16,02
49+
€15,83
74+
€15,63
99+
€14,66
199+
€14,46
249+
€14,26
499+
€14,07
999+
€13,68
Description
Description
INA GAR..-DO Series Rod Ends: These right-hand thread rod end bearings have an external thread and require maintenance. The contact material is Steel on Steel.
Equivalent: 4012802525298 GAR8DO GAR8ES SA8E
- Brand / Quality:
- INA - High Quality
- Thread Size:
- M8
- Thread Direction:
- Right Hand
Technical
Technical
| d | 8mm (+0/-0.008) |
|---|---|
| d2 | 24mm |
| l2 | 54mm |
| Radial internal clearance CN | 0.023-0.068mm |
| B | 8mm (+0/-0.12) |
| C1 | 6mm |
| Thread | M8 |
| dk | 13mm |
| h | 42mm |
| l1 | 22mm |
| l7 | 14mm |
| Chamfer dimension r1s min | 0.3mm |
| a | 15° |
| Mass | 0.029 kg |
| Basic dynamic load Cr | 5590 N |
| Basic static load Cor | 12900 N |
