SKU: GE60ES2RS.EU

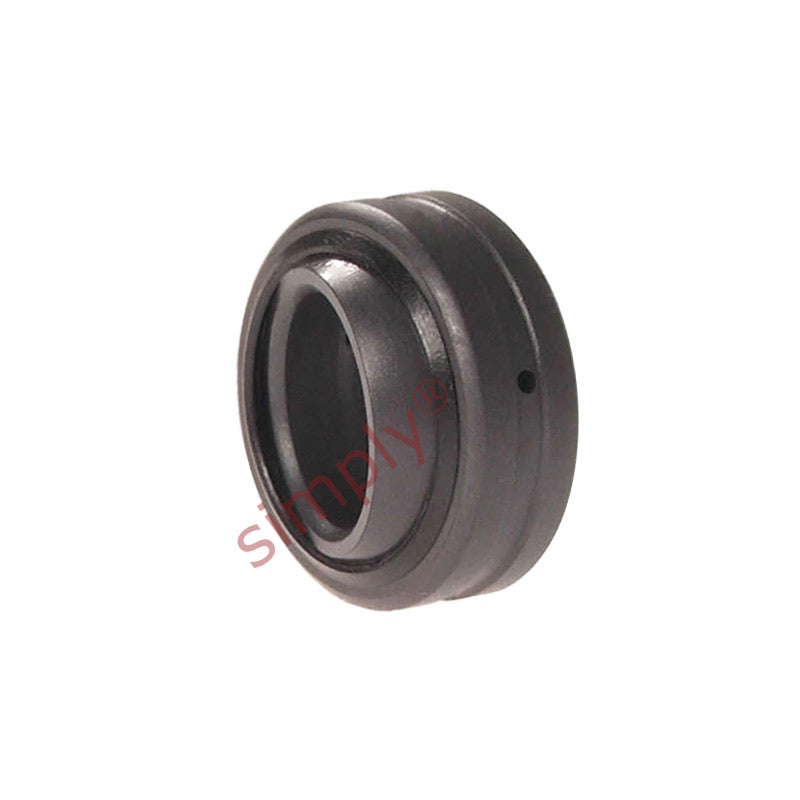

GE60ES2RS Rubber Sealed Spherical Plain Bearing 60x90x44x36mm
GE60ES2RS Rubber Sealed Spherical Plain Bearing 60x90x44x36mm
Regular price
€19,70
ex VAT
Regular price
Sale price
€19,70
ex VAT
In stock
Price Break
10+
€17,53
19+
€16,55
29+
€16,35
39+
€16,15
49+
€15,96
74+
€15,76
99+
€14,78
199+
€14,58
249+
€14,38
499+
€14,18
999+
€13,79
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Width:
- 44mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 90mm |
| B | 44mm |
| C | 36mm |
| dk | 80mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 6° |
| Dynamic load Co | 245 kN |
| Static load Cor | 1220 kN |
| Weight | 1.04 kg |
