SKU: GLE30-KRR-B-INA

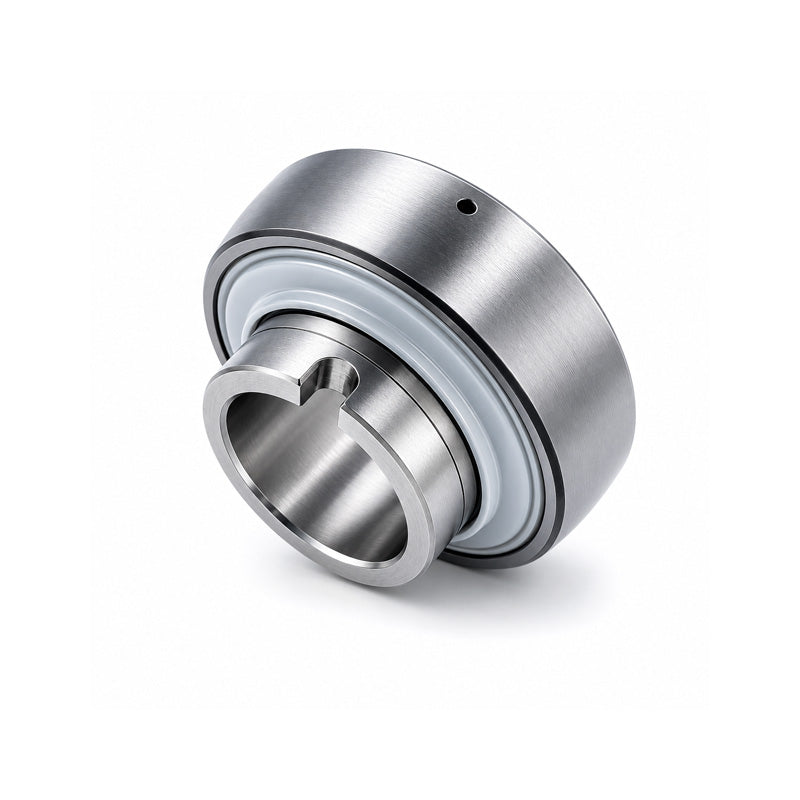

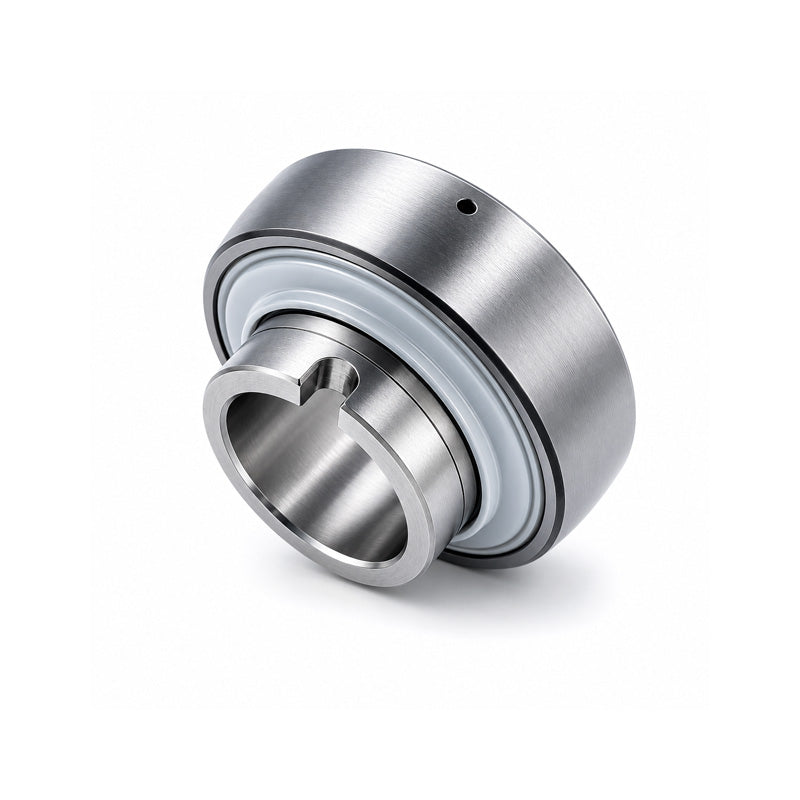

INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
Regular price
€49,57
ex VAT
Regular price
Sale price
€49,57
ex VAT
In stock
Price Break
3+
€37,75
5+
€35,63
10+
€35,21
15+
€34,78
20+
€34,36
30+
€33,94
40+
€31,82
50+
€31,39
60+
€30,97
75+
€30,54
100+
€29,69
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 36.5mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B | 36.5mm |
| b | 7mm |
| C | 18mm |
| C2 | 20.7mm |
| Ca | 4.7mm |
| D1 | 52mm |
| d1 | 40.2mm |
| N | 8mm |
| S | 14.5mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.3 kg |
