SKU: GRAE45-NPP-B-FA125.5-INA

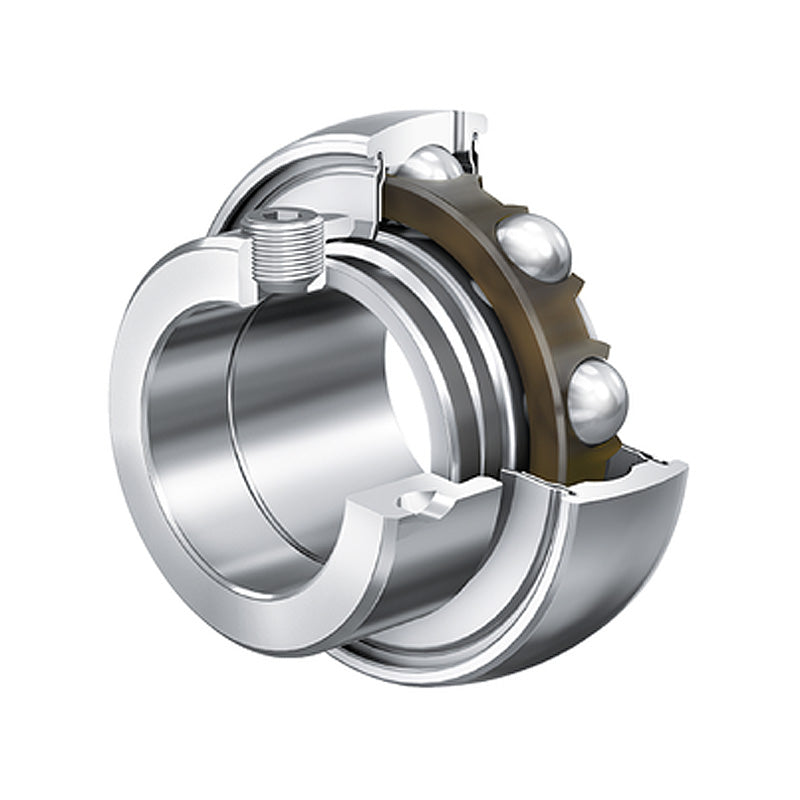

INA GRAE45-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 45x85x43.8mm
INA GRAE45-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 45x85x43.8mm
Regular price
€68,05
ex VAT
Regular price
Sale price
€68,05
ex VAT
In stock
Price Break
10+
€60,56
19+
€57,16
29+
€56,48
39+
€55,80
49+
€55,12
74+
€54,44
99+
€51,04
199+
€50,36
249+
€49,68
499+
€49,00
999+
€47,64
Couldn't load pickup availability
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 43.8mm
- Type:
- Spherical Outer
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| Ca | 6.4mm |
| d2 | 54.3mm |
| d3 max | 63mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.69 kg |
