SKU: GRAE60-NPP-B-FA125.5-INA

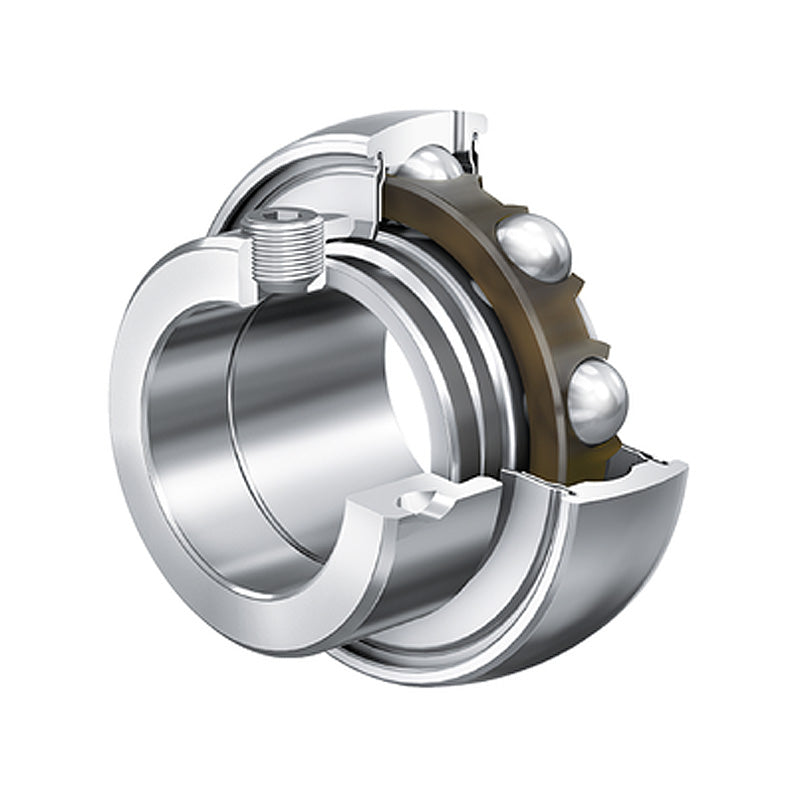

INA GRAE60-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 60x110x53.1mm - Allow 2-3 Days
INA GRAE60-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 60x110x53.1mm - Allow 2-3 Days
Regular price
€116,58
ex VAT
Regular price
Sale price
€116,58
ex VAT
In stock
Price Break
3+
€98,76
5+
€94,77
10+
€92,78
15+
€89,78
20+
€87,79
30+
€82,80
40+
€69,83
50+
€0,00
60+
€0,00
75+
€0,00
100+
€0,00
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 53.1mm
Technical
Technical
| d | 60mm |
|---|---|
| Dsp | 110mm |
| B1 | 53.1mm |
| B | 37.1mm |
| C | 24mm |
| Ca | 7.2mm |
| d2 | 72mm |
| d3 max | 84mm |
| S | 13.5mm |
| W | 5mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.4 kg |
