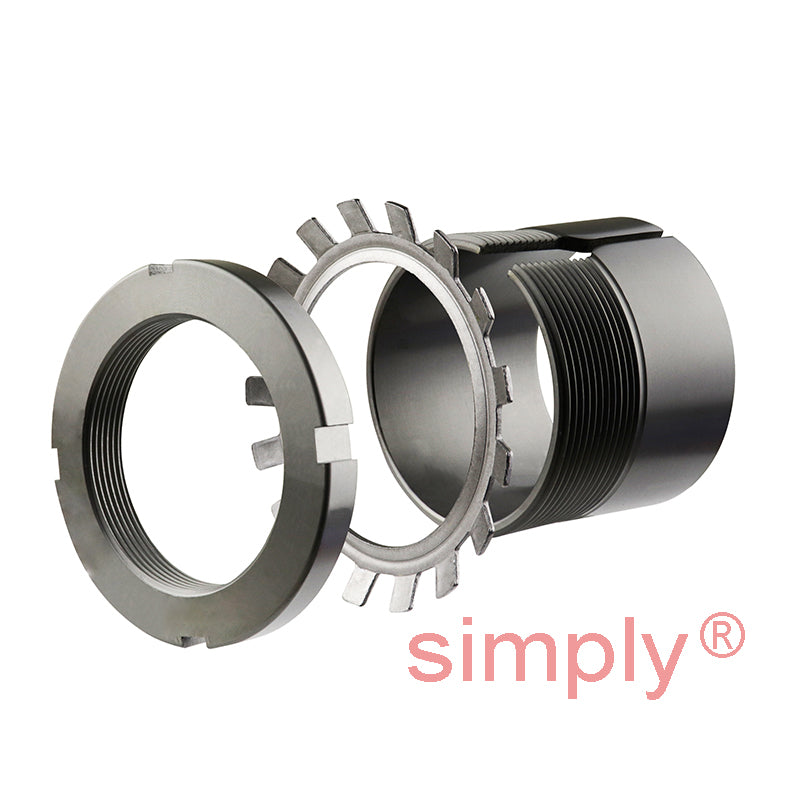

SKF H208 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
SKF H208 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Regular price
€24,84
ex VAT
Regular price
Sale price
€24,84
ex VAT
In stock
Price Break
2+
€18,92
5+
€17,85
10+
€17,64
20+
€17,43
49+
€17,22
74+
€17,00
99+
€15,94
199+
€15,73
249+
€15,52
499+
€15,30
999+
€14,88
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 58mm
- Width:
- 31mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 35mm |
| d | 40mm |
| d3 | 58mm |
| B1 | 31mm |
| B2 | 10mm |
| G | Thread 40x1.5mm |
| Weight | 0.16 kg |
| --- | Assembly Parts |
| Sleeve | H208 |
| Nut | KM8 |
| Washer | MB8 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1208K+taper+self+open>1208K</a> |
