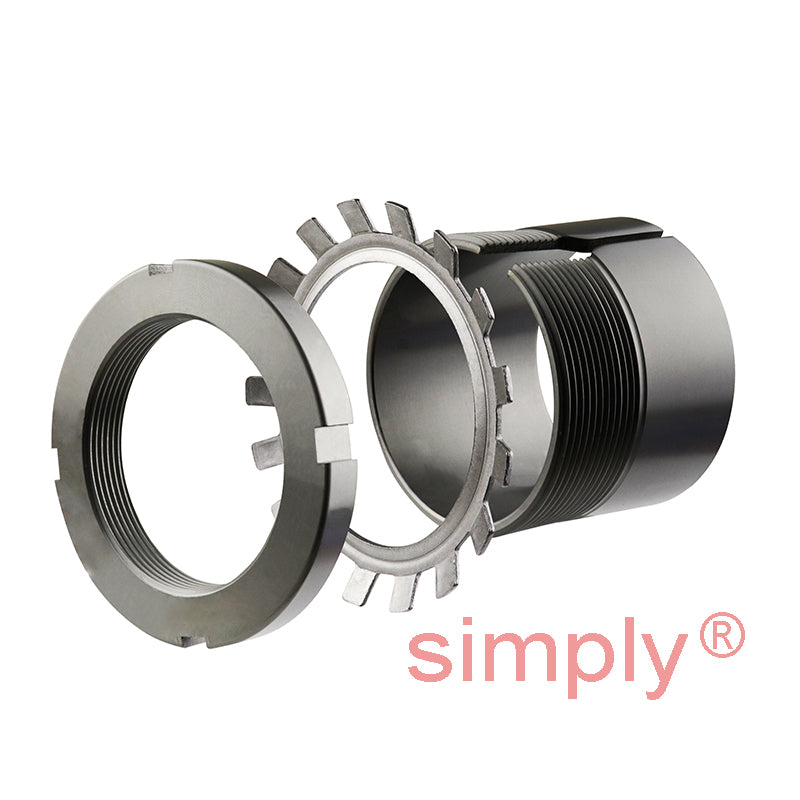

• SKF H222 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
1 1

SKU: H222-SKF

SKF H222 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft

SKF H222 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
€142,33 ex VAT
€142,33 ex VAT
Sale Sold out

In stock

Price Break
2+ €108,40
5+ €102,31
10+ €101,09
20+ €99,88
49+ €98,66
74+ €97,44
99+ €91,35
199+ €90,13
249+ €88,91
499+ €87,70
999+ €85,26
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
100mm
Outside Diameter:
145mm
Width:
63mm
Technical
--- Dimensions
d1 100mm
d 110mm
d3 145mm
B1 63mm
B2 21mm
G Thread 110x2mm
Weight 1.8 kg
--- Assembly Parts
Sleeve H222
Nut KM22
Washer MB22
Hydraulic nut HMV22E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1222K+taper+self+open>1222K</a>
