• SKF H2307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
1 1

SKU: H2307-SKF

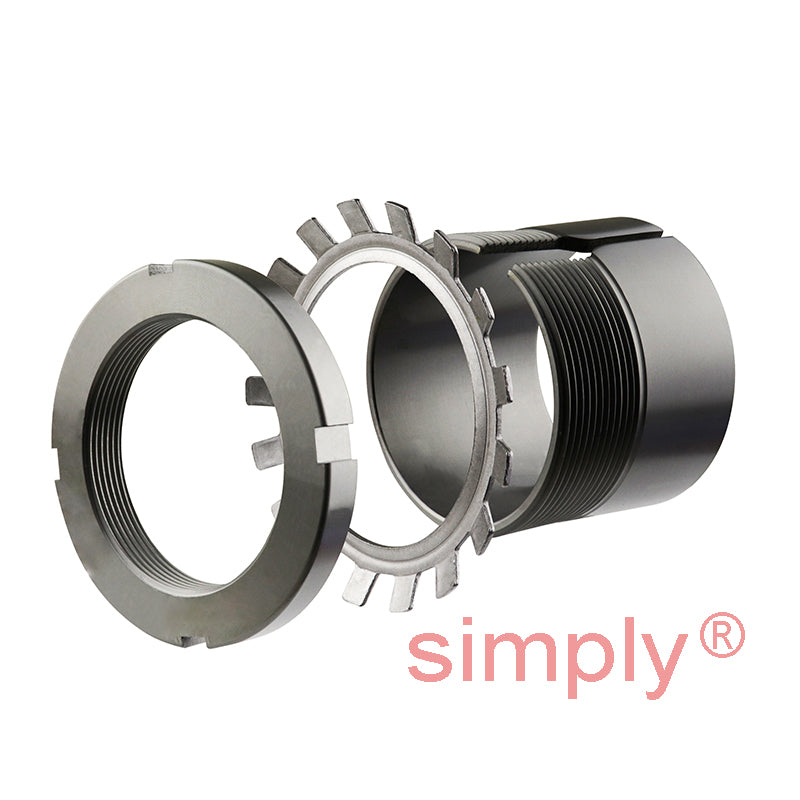

SKF H2307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

SKF H2307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
€17,12 ex VAT
€17,12 ex VAT
Sale Sold out

In stock

Price Break
2+ €13,04
5+ €12,31
10+ €12,16
20+ €12,01
49+ €11,87
74+ €11,72
99+ €10,99
199+ €10,84
249+ €10,69
499+ €10,55
999+ €10,26
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
52mm
Width:
43mm
Technical
--- Dimensions
d1 30mm
d 35mm
d3 52mm
B1 43mm
B2 9mm
G Thread 35x1.5mm
Weight 0.16 kg
--- Assembly Parts
Sleeve H2307
Nut KM7
Washer MB7
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2307K+taper+self+open>2307K</a>
