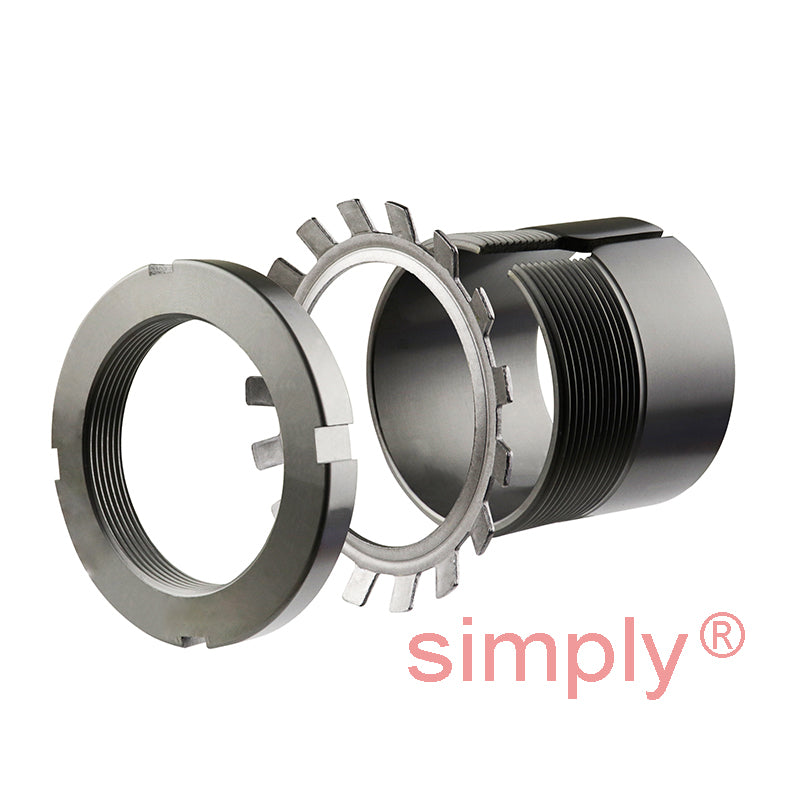

SKF H2312 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
SKF H2312 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
Regular price
€52,13
ex VAT
Regular price
Sale price
€52,13
ex VAT
In stock
Price Break
2+
€39,70
5+
€37,47
10+
€37,02
20+
€36,58
49+
€36,13
74+
€35,69
99+
€33,46
199+
€33,01
249+
€32,56
499+
€32,12
999+
€31,23
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 62mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 55mm |
| d | 60mm |
| d3 | 80mm |
| B1 | 62mm |
| B2 | 12.5mm |
| G | Thread 60x2mm |
| Weight | 0.45 kg |
| --- | Assembly Parts |
| Sleeve | H2312 |
| Nut | KM12 |
| Washer | MB12 |
| Hydraulic nut | HMV12E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2312K+taper+self+open>2312K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22312K+taper>22312K</a> |
