SKU: H2315-SKF

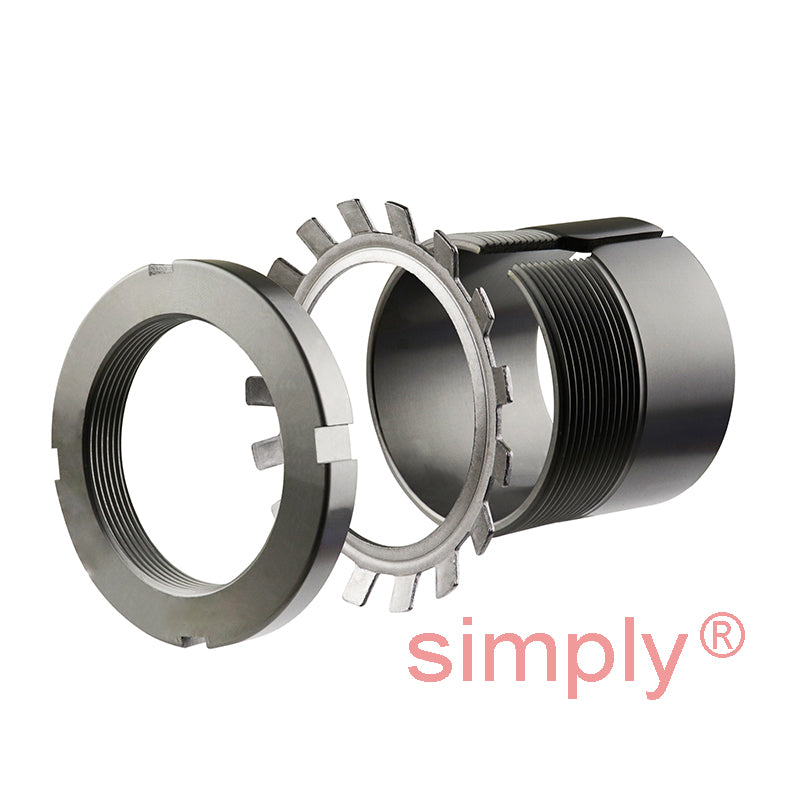

SKF H2315 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
SKF H2315 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
Regular price
€74,95
ex VAT
Regular price
Sale price
€74,95
ex VAT
In stock
Price Break
2+
€57,08
5+
€53,88
10+
€53,24
20+
€52,59
49+
€51,95
74+
€51,31
99+
€48,10
199+
€47,46
249+
€46,82
499+
€46,18
999+
€44,90
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 98mm
- Width:
- 73mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 65mm |
| d | 75mm |
| d3 | 98mm |
| B1 | 73mm |
| B2 | 14.5mm |
| G | Thread 75x2mm |
| Weight | 1.1 kg |
| --- | Assembly Parts |
| Sleeve | H2315 |
| Nut | KM15 |
| Washer | MB15 |
| Hydraulic nut | HMV15E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2315K+taper+self+open>2315K</a> |
