SKU: H305C-SKF

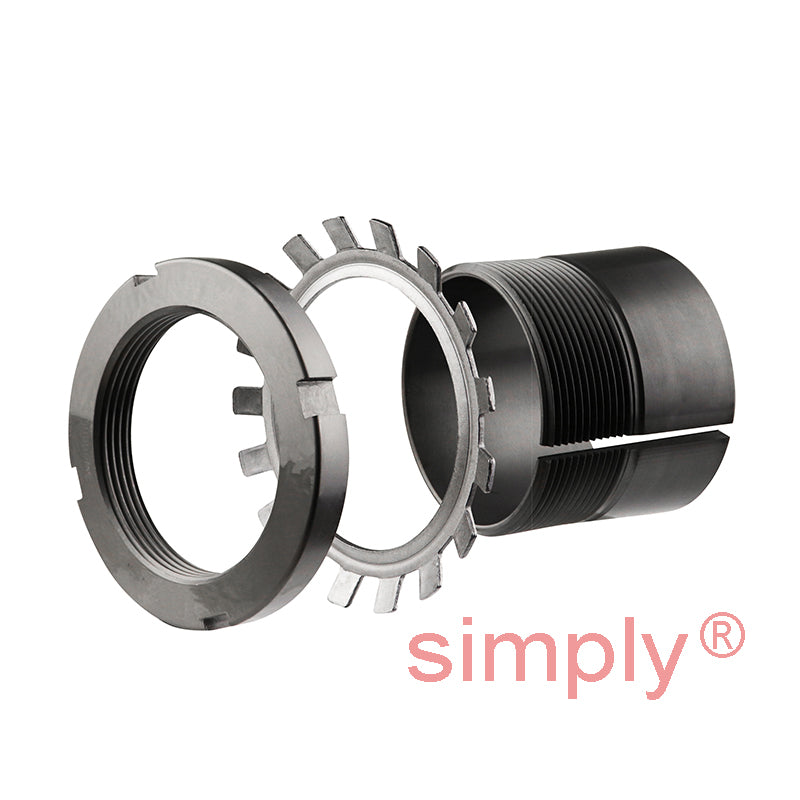

SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft

Name: SKF H305C Adaptor Sleeve with Lock Nut and Locking Device for 20mm Shaft
Brand: SKF
SKU: H305C-SKF
Price: 35.77 EUR
Availability: InStock

€35,77 ex VAT

Sale Sold out

In stock

Price Break

2+ €27,25

5+ €25,72

10+ €25,41

20+ €25,10

49+ €24,80

74+ €24,49

99+ €22,96

199+ €22,65

249+ €22,35

499+ €22,04

999+ €21,43

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 38mm
Width:: 29mm

Technical

---	Dimensions
d1	20mm
d	25mm
d3	38mm
B1	29mm
B2	9mm
G	Thread 25x1.5mm
Weight	0.071 kg
---	Assembly Parts
Sleeve	H305C
Nut	KM5
Washer	MB5C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2205K-2RS+taper>2205K-2RS</a>
