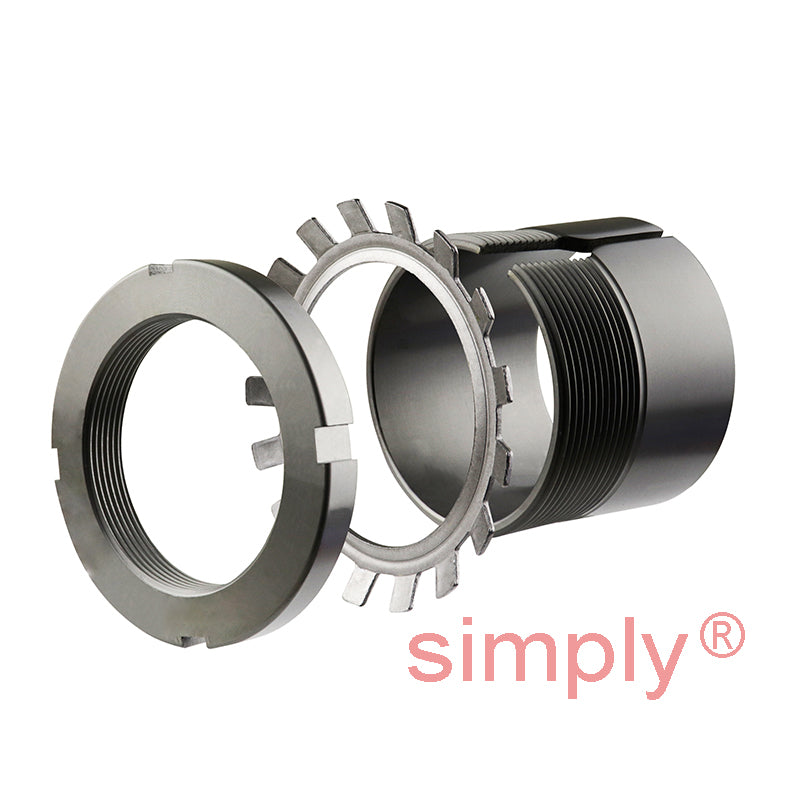

• SKF H3124 Adaptor Sleeve with Lock Nut and Locking Device for 110mm Shaft
1 1

SKU: H3124-SKF

SKF H3124 Adaptor Sleeve with Lock Nut and Locking Device for 110mm Shaft

SKF H3124 Adaptor Sleeve with Lock Nut and Locking Device for 110mm Shaft
€191,24 ex VAT
€191,24 ex VAT
Sale Sold out

In stock

Price Break
2+ €145,65
5+ €137,46
10+ €135,83
20+ €134,19
49+ €132,55
74+ €130,92
99+ €122,73
199+ €121,10
249+ €119,46
499+ €117,83
999+ €114,55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
110mm
Outside Diameter:
155mm
Width:
88mm
Technical
--- Dimensions
d1 110mm
d 120mm
d3 155mm
B1 88mm
B2 22mm
G Thread 120x2mm
Weight 2.5 kg
--- Assembly Parts
Sleeve H3124
Nut KM24
Washer MB24
Hydraulic nut HMV24E
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23124K+taper>23124K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22224K+taper>22224K</a>
