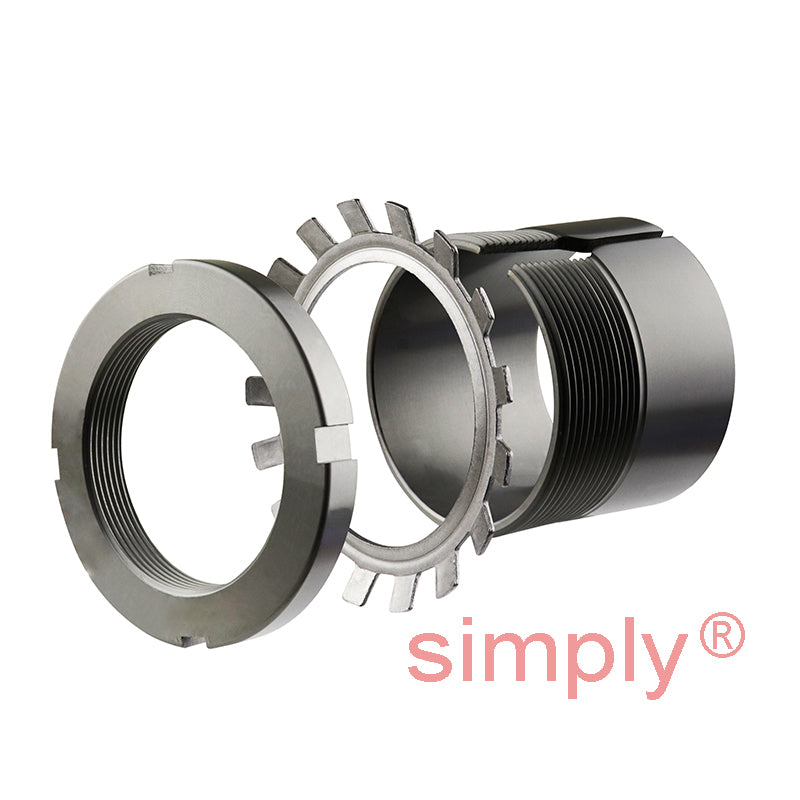

• SKF H3126 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
1 1

SKU: H3126-SKF

SKF H3126 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft

SKF H3126 Adaptor Sleeve with Lock Nut and Locking Device for 115mm Shaft
€197,63 ex VAT
€197,63 ex VAT
Sale Sold out

In stock

Price Break
2+ €150,52
5+ €142,06
10+ €140,37
20+ €138,68
49+ €136,99
74+ €135,30
99+ €126,84
199+ €125,15
249+ €123,46
499+ €121,77
999+ €118,39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
115mm
Outside Diameter:
165mm
Width:
92mm
Technical
--- Dimensions
d1 115mm
d 130mm
d3 165mm
B1 92mm
B2 23mm
G Thread 130x2mm
Weight 3.45 kg
--- Assembly Parts
Sleeve H3126
Nut KM26
Washer MB26
Hydraulic nut HMV26E
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23126K+taper>23126K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22226K+taper>22226K</a>
