SKU: H317E-SKF

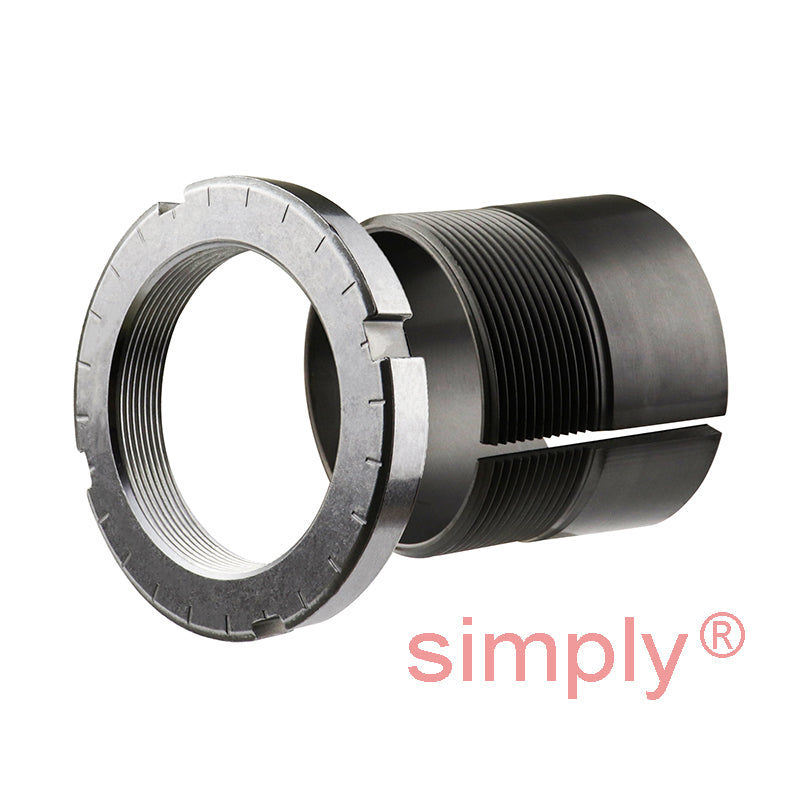

SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft

Name: SKF H317E Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
Brand: SKF
SKU: H317E-SKF
Price: 86.76 EUR
Availability: InStock

€86,76 ex VAT

Sale Sold out

In stock

Price Break

2+ €66,08

5+ €62,36

10+ €61,62

20+ €60,88

49+ €60,14

74+ €59,39

99+ €55,68

199+ €54,94

249+ €54,20

499+ €53,45

999+ €51,97

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 110mm
Width:: 63mm

Technical

---	Dimensions
d1	75mm
d	85mm
d3	110mm
B1	63mm
B2	19mm
G	Thread 85x2mm
Weight	1.17 kg
---	Assembly Parts
Sleeve	H317E
Nut	KMFE17
Hydraulic nut	HMV17E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217K+taper>C2217K</a>
