• SKF H318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
1 1

SKU: H318-SKF

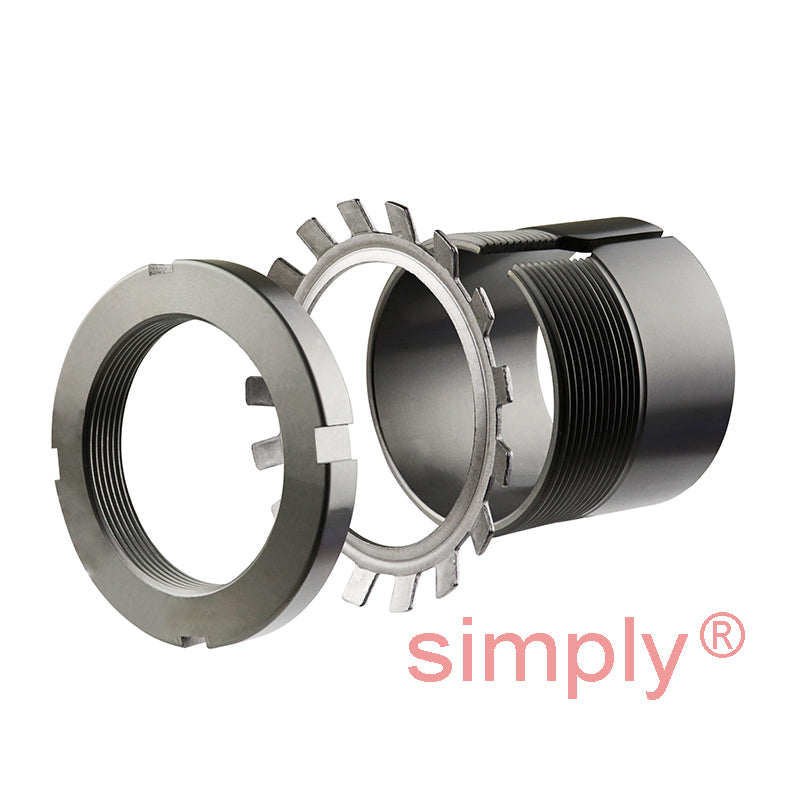

SKF H318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

SKF H318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
€87,21 ex VAT
€87,21 ex VAT
Sale Sold out

In stock

Price Break
2+ €66,42
5+ €62,69
10+ €61,95
20+ €61,20
49+ €60,45
74+ €59,71
99+ €55,98
199+ €55,23
249+ €54,48
499+ €53,74
999+ €52,24
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
120mm
Width:
65mm
Technical
--- Dimensions
d1 80mm
d 90mm
d3 120mm
B1 65mm
B2 18mm
G Thread 90x2mm
Weight 1.3 kg
--- Assembly Parts
Sleeve H318
Nut KM18
Washer MB18
Hydraulic nut HMV18E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2218K+taper+self+open>2218K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1318K+taper+self+open>1318K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22218K+taper>22218K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21318K+taper>21318K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2218K+taper>C2218K</a>
