SKU: H322E-SKF

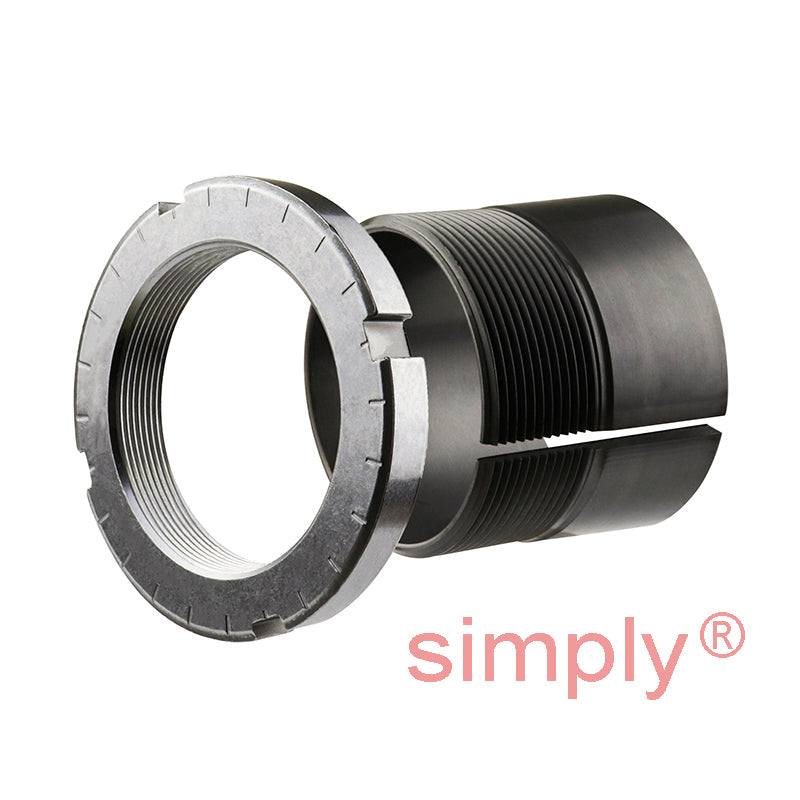

SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
SKF H322E Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Regular price
€164,41
ex VAT
Regular price
Sale price
€164,41
ex VAT
In stock
Price Break
2+
€125,21
5+
€118,18
10+
€116,77
20+
€115,36
49+
€113,96
74+
€112,55
99+
€105,52
199+
€104,11
249+
€102,70
499+
€101,29
999+
€98,48
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 77mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 100mm |
| d | 110mm |
| d3 | 145mm |
| B1 | 77mm |
| B2 | 21.5mm |
| G | Thread 110x2mm |
| Weight | 2.11 kg |
| --- | Assembly Parts |
| Sleeve | H322E |
| Nut | KMFE22 |
| Hydraulic nut | HMV22E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3022K+taper>C3022K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2222K+taper>C2222K</a> |
