SKU: HCFL213

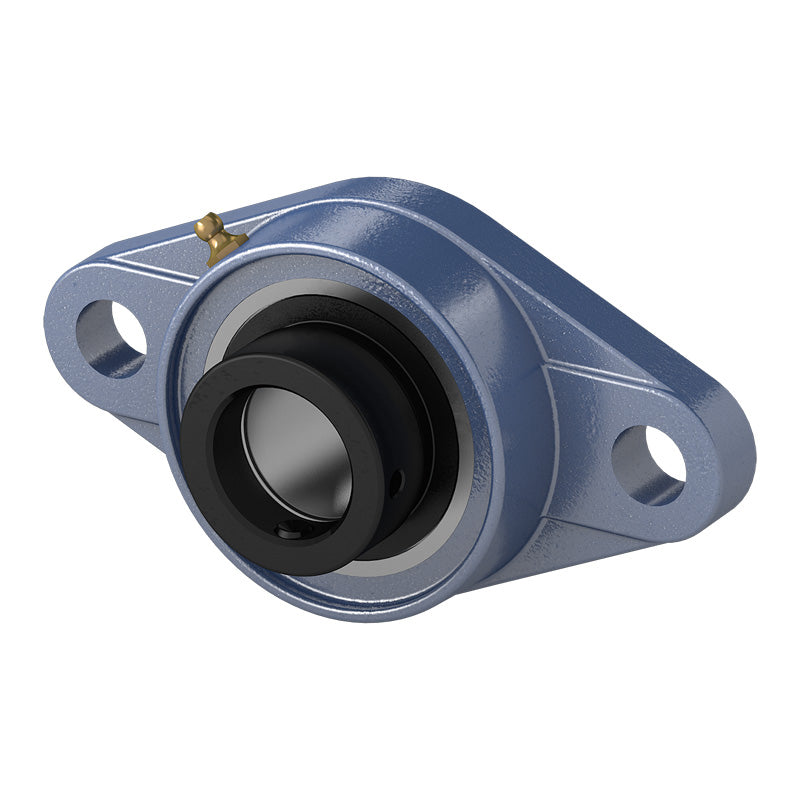

HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
Regular price
€82,48
ex VAT
Regular price
Sale price
€82,48
ex VAT
In stock
Price Break
3+
€62,82
4+
€59,29
9+
€58,58
19+
€57,87
49+
€57,17
99+
€56,46
499+
€52,93
999+
€52,23
1999+
€51,52
2999+
€50,82
4999+
€49,41
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- HCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 258mm |
| e | 210mm |
| i | 30mm |
| g | 22mm |
| l | 50mm |
| s | 23mm |
| b | 155mm |
| z | 81.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC213 |
| Housing no | FL213 |
| Weight | 5.1 kg |
