SKU: HCFL216

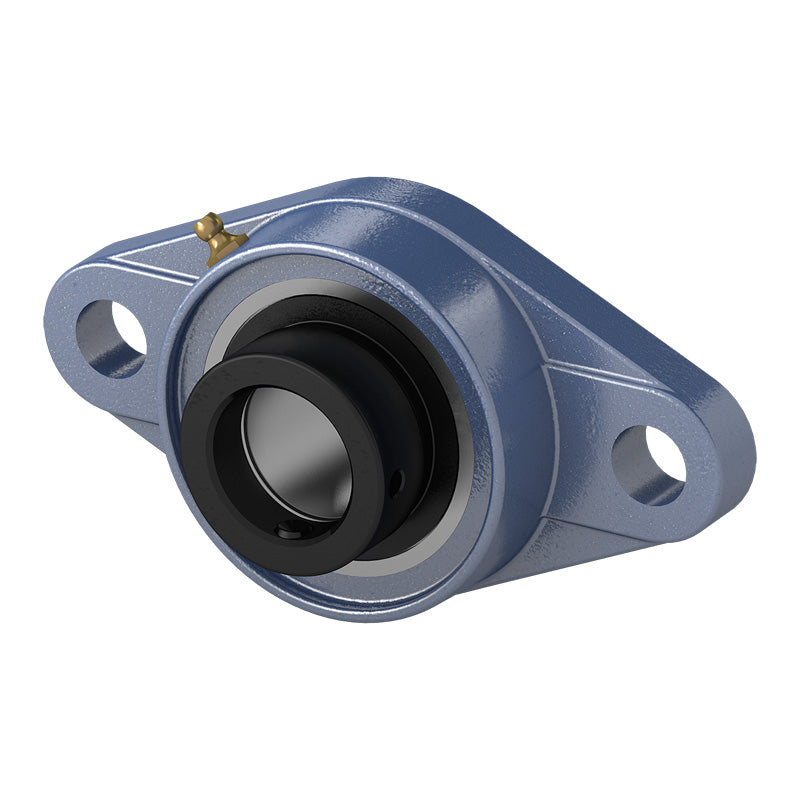

HCFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Eccentric Collar Insert
HCFL216 Metric Two Bolt Cast Iron Oval Housing with 80mm Eccentric Collar Insert
Regular price
€165,08
ex VAT
Regular price
Sale price
€165,08
ex VAT
In stock
Price Break
10+
€146,92
19+
€138,67
29+
€137,02
39+
€135,37
49+
€133,71
74+
€132,06
99+
€123,81
199+
€122,16
249+
€120,51
499+
€118,86
999+
€115,56
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- HCFL
- Bolt Hole Centres:
- 233mm
Technical
Technical
| d | 80mm |
|---|---|
| a | 290mm |
| e | 233mm |
| i | 34mm |
| g | 22mm |
| l | 58mm |
| s | 25mm |
| b | 180mm |
| z | 91.9mm |
| B1 | 95.2mm |
| n | 37.3mm |
| Bolt size | M22 |
| Bearing no | HC216 |
| Housing no | FL216 |
| Weight | 7.5867 kg |
