SKU: HFL.1226.MB

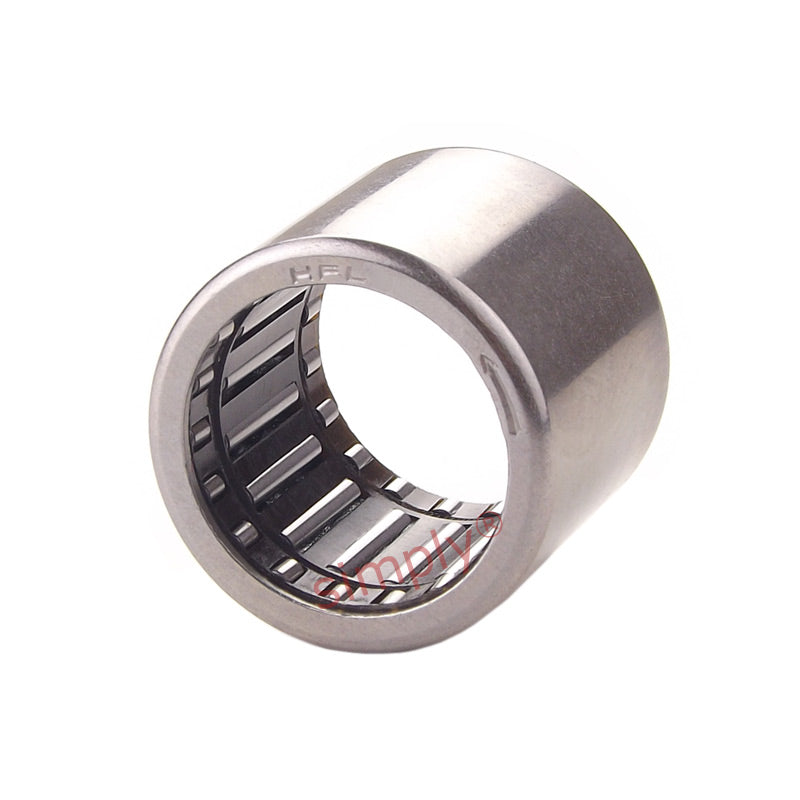

Branded HFL1226 Needle Roller Clutch Type One Way Bearing 12x18x26mm
Branded HFL1226 Needle Roller Clutch Type One Way Bearing 12x18x26mm
Regular price
€24,45
ex VAT
Regular price
Sale price
€24,45
ex VAT
In stock
Price Break
10+
€18,62
19+
€17,58
29+
€17,37
39+
€17,16
49+
€16,95
74+
€16,74
99+
€15,69
199+
€15,48
249+
€15,27
499+
€15,06
999+
€14,65
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 26mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 26mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 12.2 N m |
| Speed (rotating shaft) | 11000 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Weight | 18 g |
