SKU: HFL.1426.EU

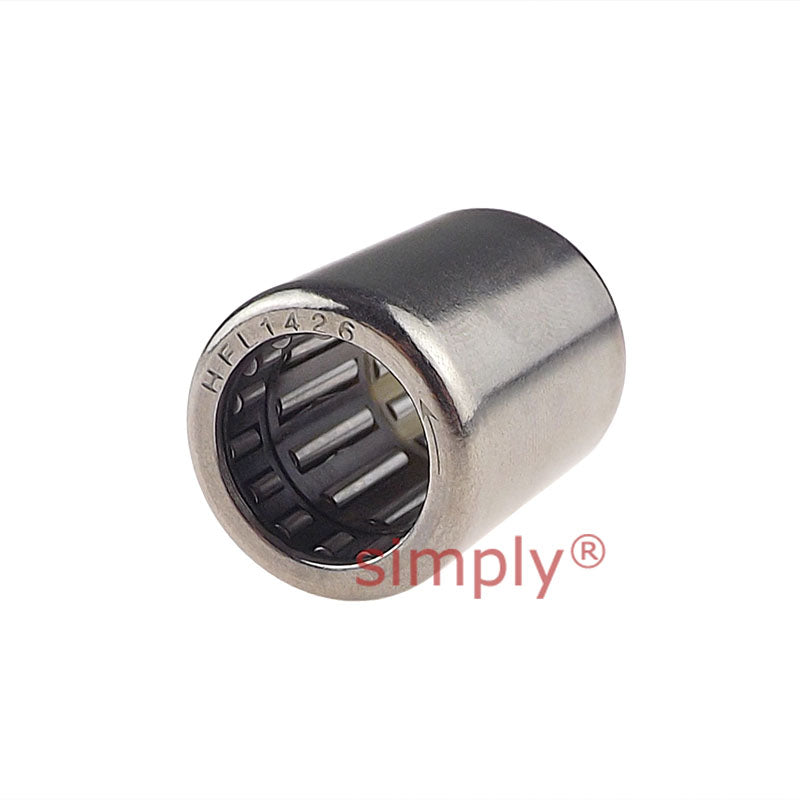

HFL1426 Budget Needle Roller Clutch Type One Way Bearing 14x20x26mm
HFL1426 Budget Needle Roller Clutch Type One Way Bearing 14x20x26mm
Regular price
€8,10
ex VAT
Regular price
Sale price
€8,10
ex VAT
In stock
Price Break
10+
€6,17
19+
€5,82
29+
€5,75
39+
€5,68
49+
€5,61
74+
€5,54
99+
€5,20
199+
€5,13
249+
€5,06
499+
€4,99
999+
€4,85
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 26mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 26mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 17.3 Nm |
| Speed (rotating shaft) | 9500 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Maximum permissable radial load | 6800 N |
| Limiting load | 7800 N/min |
| Weight | 20 g |
