SKU: HFL.1426.MB

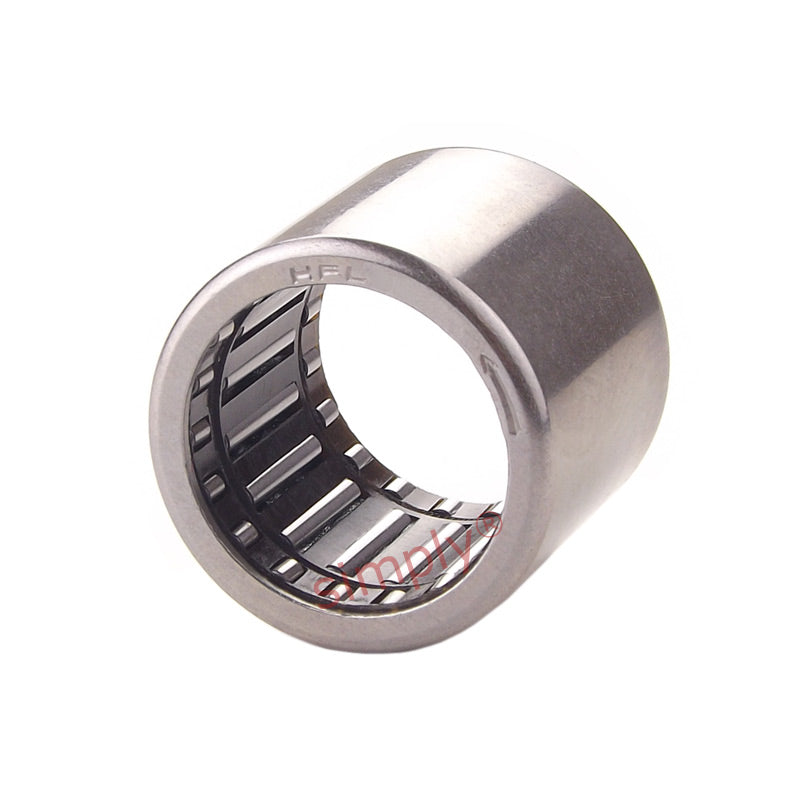

Branded HFL1426 Needle Roller Clutch Type One Way Bearing 14x20x26mm
Branded HFL1426 Needle Roller Clutch Type One Way Bearing 14x20x26mm
Regular price
€29,30
ex VAT
Regular price
Sale price
€29,30
ex VAT
In stock
Price Break
10+
€22,32
19+
€21,06
29+
€20,81
39+
€20,56
49+
€20,31
74+
€20,06
99+
€18,80
199+
€18,55
249+
€18,30
499+
€18,05
999+
€17,55
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 26mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 26mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 17.3 N m |
| Speed (rotating shaft) | 9500 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Weight | 20 g |
