SKU: HFL.1826.MB

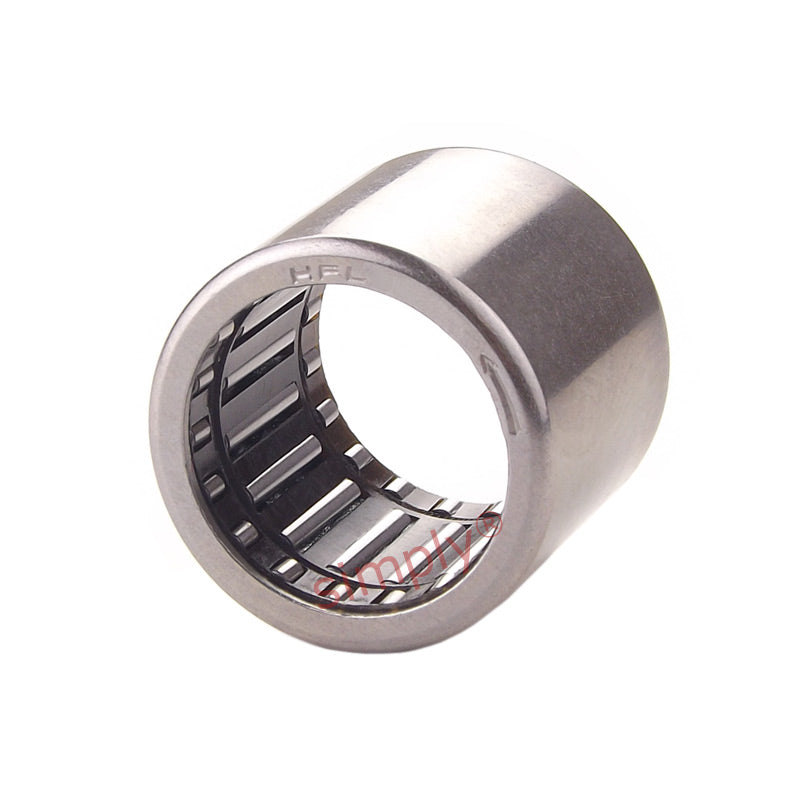

Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm
Branded HFL1826 Needle Roller Clutch Type One Way Bearing 18x24x26mm
Regular price
€30,25
ex VAT
Regular price
Sale price
€30,25
ex VAT
In stock
Price Break
10+
€23,04
19+
€21,75
29+
€21,49
39+
€21,23
49+
€20,97
74+
€20,71
99+
€19,42
199+
€19,16
249+
€18,90
499+
€18,64
999+
€18,13
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 26mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 26mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 24.1 N m |
| Speed (rotating shaft) | 7500 rpm |
| Speed (rotating outer ring) | 7500 rpm |
| Weight | 25 g |
