SKU: HK0609-MB
Major Brand HK0609 Drawn Cup Type Needle Roller Bearing with Two Open Ends 6x10x9mm
Major Brand HK0609 Drawn Cup Type Needle Roller Bearing with Two Open Ends 6x10x9mm
Regular price
€4,70
ex VAT
Regular price
Sale price
€4,70
ex VAT
Equivalent to: TLA69Z RHNA061009
In stock
Price Break
10+
€4,18
19+
€3,95
29+
€3,90
39+
€3,85
49+
€3,81
74+
€3,76
99+
€3,53
199+
€3,48
249+
€3,43
499+
€3,38
999+
€3,29
Couldn't load pickup availability
Description
Description
|

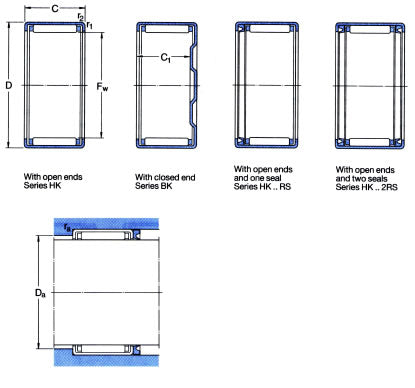

HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA69Z RHNA061009
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 10mm
- Width:
- 9mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 10mm |
| C | 9mm |
| Dynamic load | 2810 N |
| Static load | 2700 N |
| Fatigue load limit Pu | 285 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| r1r2 min | 0.4mm |
| Da max | 6.3mm |
| ra max | 0.4mm |
| Seal | G6x10x2S |
| Weight | 2.5 g |
