SKU: HK1620.2RS-EU

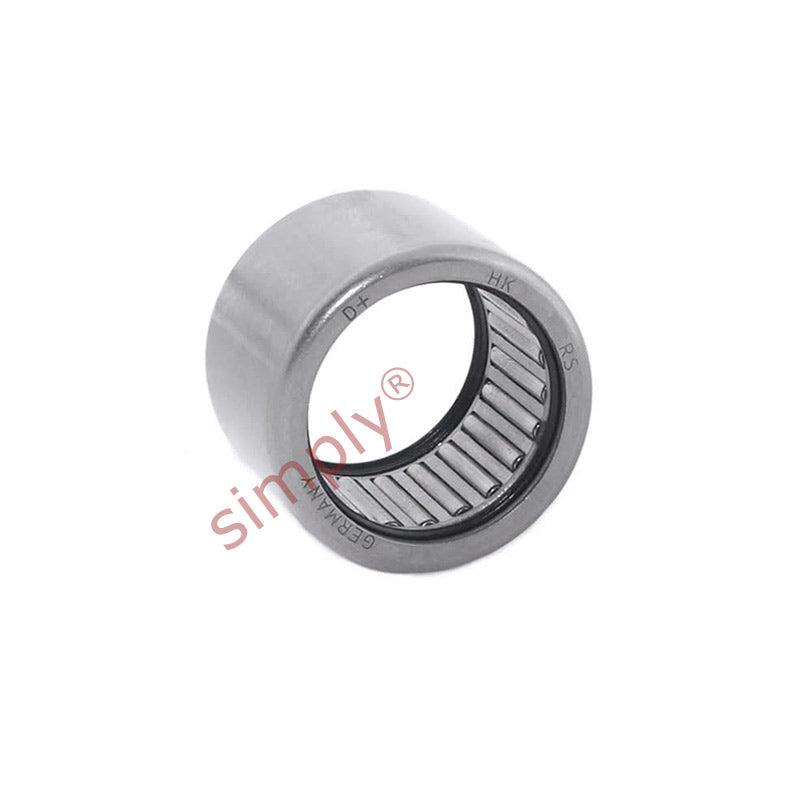

HK16202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x20mm
HK16202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x20mm
Regular price
€8,02
ex VAT
Regular price
Sale price
€8,02
ex VAT
In stock
Price Break
10+
€6,10
19+
€5,76
29+
€5,69
39+
€5,62
49+
€5,55
74+
€5,49
99+
€5,14
199+
€5,07
249+
€5,01
499+
€4,94
999+
€4,80
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 20mm |
| Dynamic load C | 11000 N |
| Static load Co | 14600 N |
| Fatigue load limit Pu | 1660 N |
| Speed in grease | 10000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x22 |
| Weight | 18 g |
