SKU: HK1714-MB

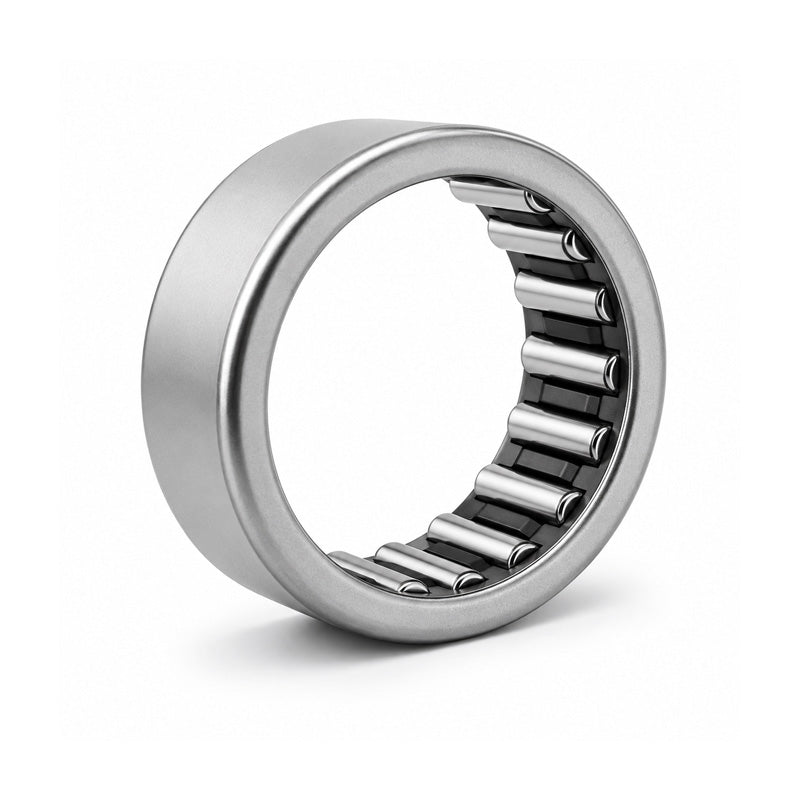

Major Brand HK1714 Drawn Cup Type Needle Roller Bearing with Two Open Ends17x23x14mm
Major Brand HK1714 Drawn Cup Type Needle Roller Bearing with Two Open Ends17x23x14mm
Regular price
€4,71
ex VAT
Regular price
Sale price
€4,71
ex VAT
In stock
Price Break
10+
€3,58
19+
€3,38
29+
€3,34
39+
€3,30
49+
€3,26
74+
€3,22
99+
€3,02
199+
€2,98
249+
€2,94
499+
€2,90
999+
€2,82
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 23mm
- Width:
- 14mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 23mm |
| C | 14mm |
| Weight | 16 g |
